CK1042 3 Position 4 Pole MBB Rotary Switch 150mA 250V
by Lorlin
SKU 481509
MPN: CK1042
Availability:
369 in stock
Original price
£2.47
-
Original price
£2.47
Original price
£2.47
Inc VAT
£2.47
-
£2.47
Current price
£2.47
Inc VAT

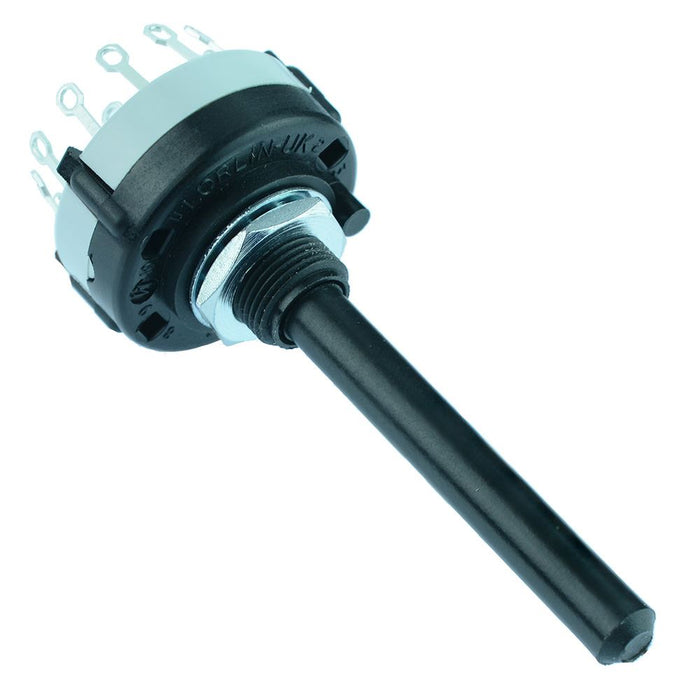

4 pole rotary switch manufactured by Lorlin featuring 3 positions featuring make before break solder contacts and 6mm spindle, housed in a 27.5mm diameter UL-V0 rated body.
4 poles 3 positions Make before break solder contacts Standard 30dg indexing Adjustable stop to restrict number of positions 27.5mm diameter body Rating: 150mA 250Vac/dc, 1A 24Vdc Lorlin CK series
Specification
| Back order lead time | 90 Days |
| Contact configuration | 4P3T |
| Contact rating | 0.15A 250V, 1A 24VDC |
| Current rating | 1A @ 24VDC |
| Material | Polyamide |
| Mounting style | Panel |
| Number of poles | 4 |
| Number of ways | 3 |
| Operating temperature | -30°C to +65°C |
| Panel cut out | 10mm |
| Terminal type | Solder |
| Voltage rating | 250VAC |
