CK1040 6 Position 2 Pole MBB Rotary Switch 150mA 250V

by Lorlin
SKU 481507

MPN: CK1040

356 in stock
Original price £2.47 - Original price £2.47
Original price
£2.47 Inc VAT
£2.47 - £2.47
Current price £2.47 Inc VAT

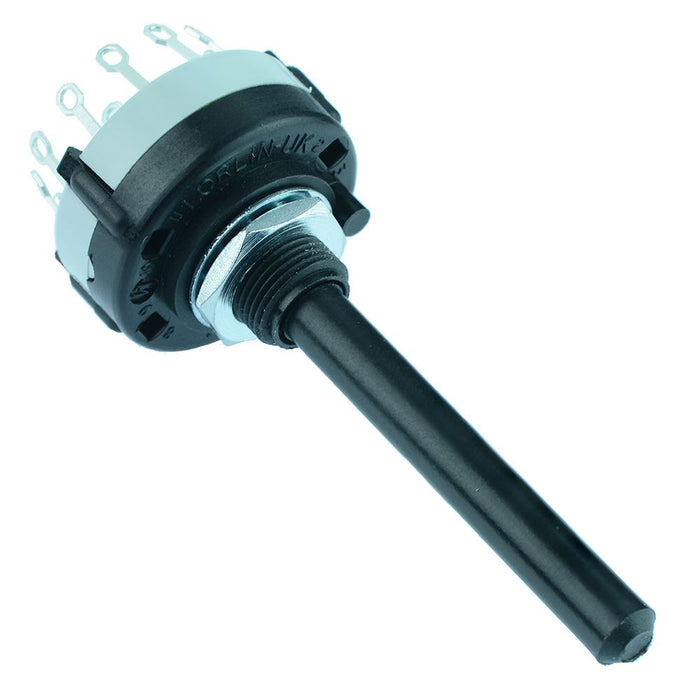

2 pole rotary switch manufactured by Lorlin featuring 6 positions featuring make before break solder contacts and 6mm spindle, housed in a 27.5mm diameter UL-V0 rated body.

  • 2 poles
  • 6 positions
  • Make before break solder contacts
  • Standard 30dg indexing
  • Adjustable stop to restrict number of positions
  • 27.5mm diameter body
  • Rating: 150mA 250Vac/dc, 1A 24Vdc
  • Lorlin CK series
  • Specification
    Back order lead time 90 Days
    Contact configuration 2P6T
    Contact rating 0.15A 250V, 1A 24VDC
    Current rating 1A @ 24VDC
    Material Polyamide
    Mounting style Panel
    Number of poles 2
    Number of ways 6
    Operating temperature -30°C to +65°C
    Panel cut out 10mm
    Terminal type Solder
    Voltage rating 250VAC
    Request a quote
