Changeover Master Battery Isolator Switch 275A 12VDC
SKU 489613
MPN: SF50634
Availability:
100 in stock
Original price
£11.52
-
Original price
£11.52
Original price
£11.52
Inc VAT
£11.52
-
£11.52
Current price
£11.52
Inc VAT

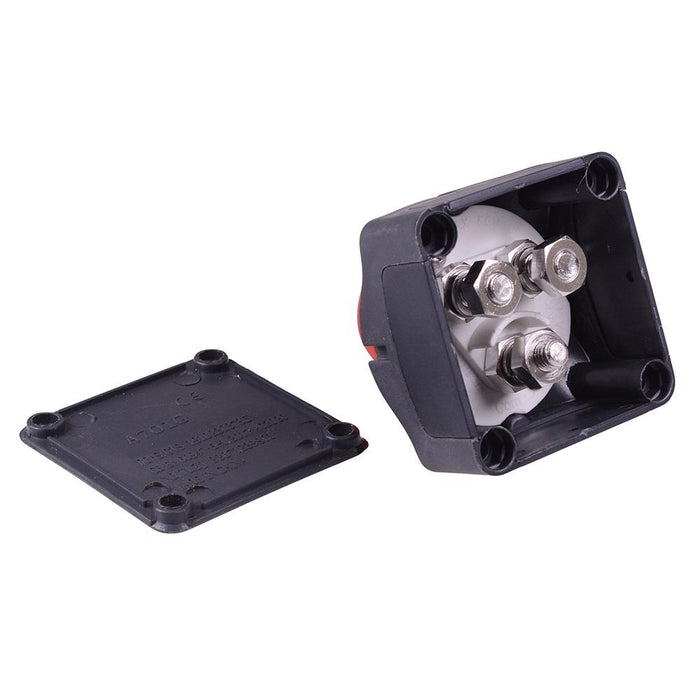

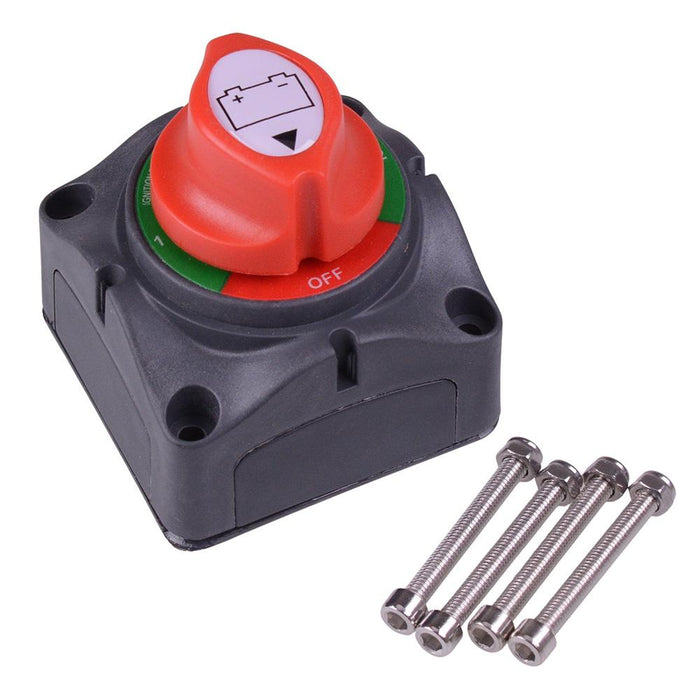

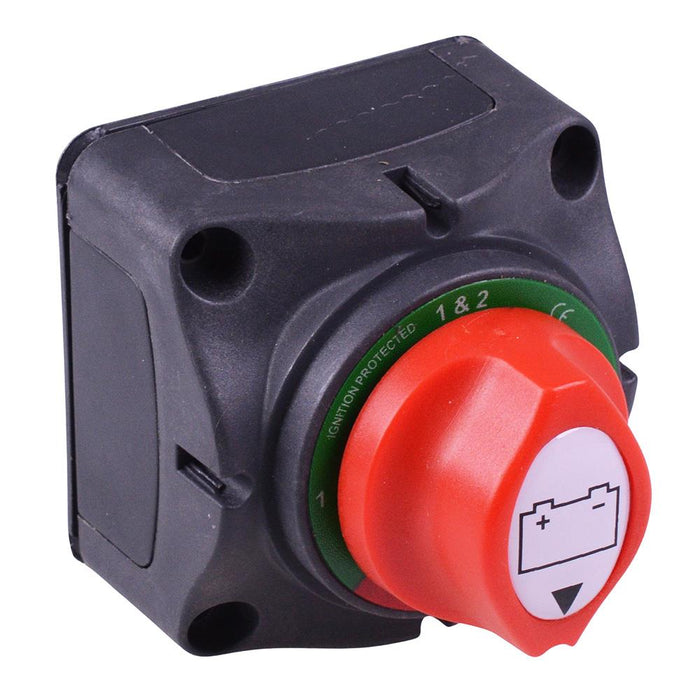

Changeover battery isolator switch housed in a compact package with removable side plates for cable entry. The switch can be either surface or recess mounted and is suitable for automotive applications with a continuous current up to 275A.
Function: 1, 2, 1&2, OFF Continuous current: 275A @ 12VDC Crank current: 1250A Voltage rating: 12-48VDC Stud size: 3*M8 Size: 68 x 68 x 75mm Includes mounting bolts and nuts
Specification
| Back order lead time | 120 Days |
| Current rating | 275A |
| Moq | 1 |
| Mounting style | Chassis Mount |
| Number of positions | 2 |
| Switch operation | Changeover |
| Terminal type | M8 Studs |
| Voltage rating | 48VDC |
