C14 IEC Inlet Socket PCB Terminals 10A
SKU 356072
MPN: SE-AS-301-5
Availability:
211 in stock
Original price
$0.78
-
Original price
$0.78
Original price
$0.78
$0.78
$0.78
-
$0.78
Current price
$0.78

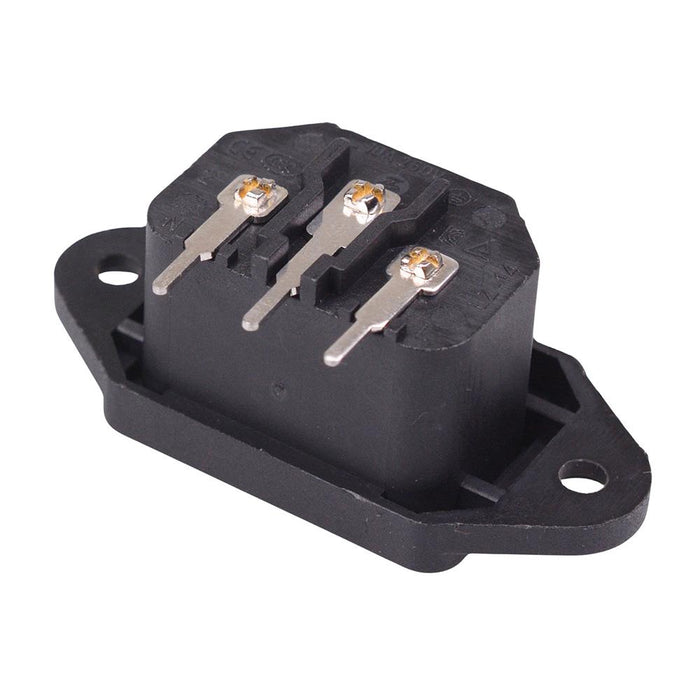

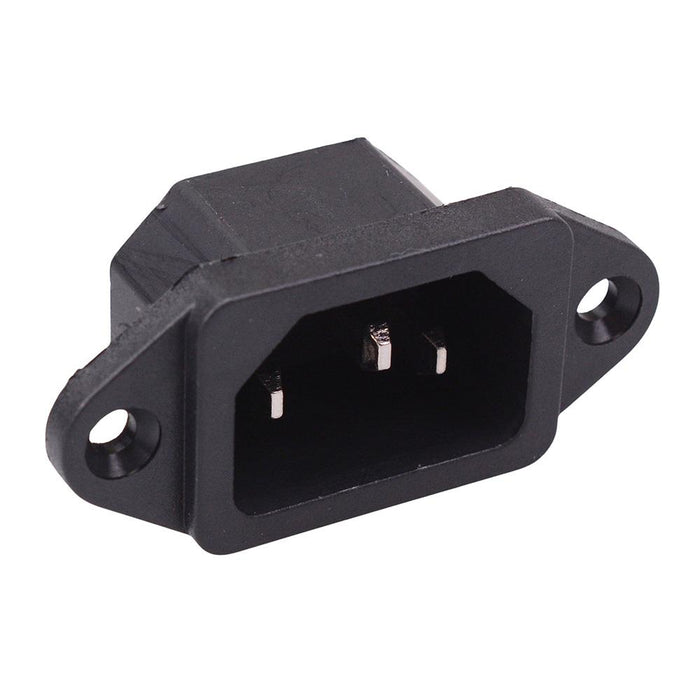

C14 inlet connector featuring PCB terminals, suitable for chassis mounting. The inlet is rated to 10A 250VAC and is suitable for mating with C13 connectors.
Rating: 10A 250VAC Panel cut-out: 27.4 x 19.8mm Mounting hole pitch: 40mm PCB terminal pitch: 7mm
Specification
| Back Order Lead Time | 150 |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Current Rating | 10A |
| Housing Material | PBT |
| MOQ | 5 |
| Mounting Type | Panel |
| Operating Temperature | -45°C to +105°C |
| Termination Method | PCB |
| Type | C14 |
| Voltage Rating | 250VAC |
