C14 IEC Panel Mount Inlet 10A 6.100.3300

SKU 490883

MPN: 6.100.3300

Availability:
46 in stock
Original price £1.26 - Original price £1.26
Original price
£1.26
£1.26 - £1.26
Current price £1.26

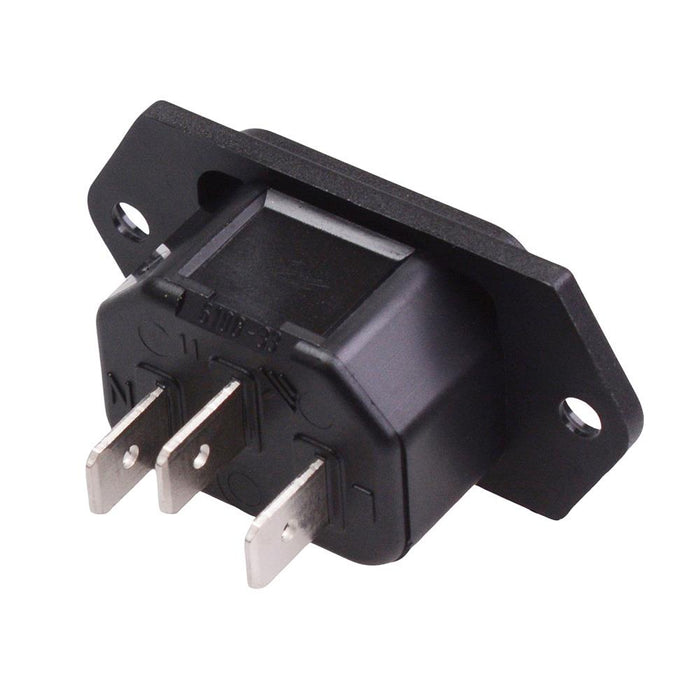

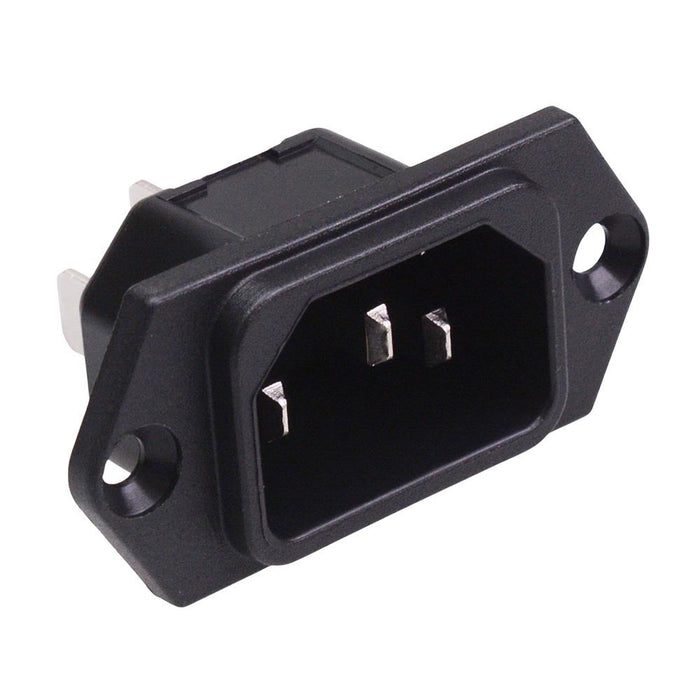

The 6.100.3300 is a C14 IEC input socket featuring 10A 250V rating and 6.3mm quick connect terminals. The connector features 2 flange holes for front or rear panel mounting in power applications.

  • Rating: 10A 250VAC
  • 6.3x0.8mm terminals
  • Screw holes 40mm pitch
  • 3.5mm screw holes
  • Panel cut-out: 28*20mm front, 28.5*21mm rear mounting
  • Dimensions: 23 x 48 x 28.5mm (height x length x depth)
  • UL and VDE approved
  • Specification
    Back Order Lead Time 7 Days
    Colour Black
    Current Rating 10A
    Housing Material Thermoplastic
    MOQ 1
    Mounting Type Panel
    Operating Temperature -25°C to +70°C
    Panel Cut Out 28 x 20mm
    Protection Level IP40
    Termination Method Quick Connect
    Type C14
    Voltage Rating 250VAC
