C14 IEC Fused and Switched Inlet Panel Mount 10A
SKU 489596
MPN: RE-C-AS-303
Availability:
199 in stock
Original price
£1.74
-
Original price
£1.74
Original price
£1.74
Inc VAT
£1.74
-
£1.74
Current price
£1.74
Inc VAT

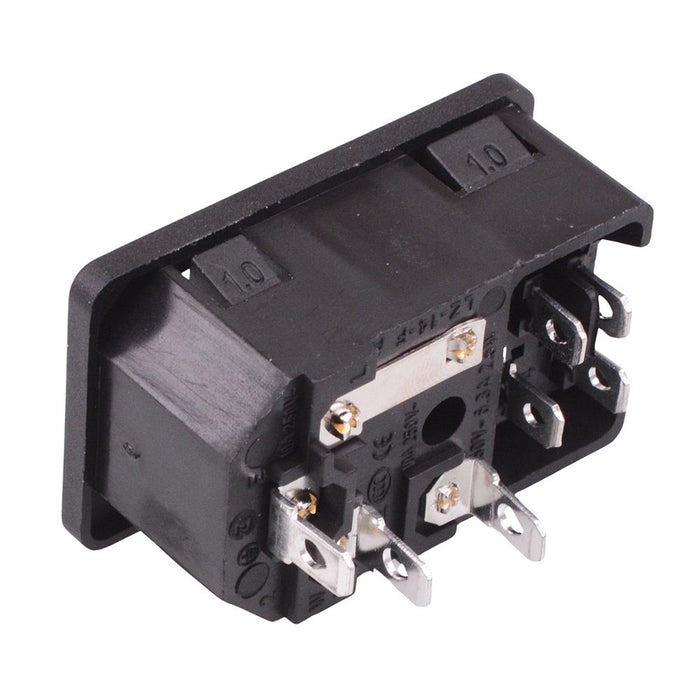

Fused and switched 3 pole C14 IEC chassis Inlet connector with quick-connect terminals. The inlet is suitable for a wide range of power applications requiring a fused and switched connection.
Panel cut-out: 46.8 x 27.8mm Rating: 10A 250VAC 4.8mm x 0.8mm quick connect terminals 5 x 20mm fuse size Includes rocker switch Nickel plated brass contacts PA66 housing Dimensions: 50 x 30 x 30.5mm (length x width x depth)
Specification
| Back order lead time | 120 Days |
| Colour | Black |
| Contact material | Nickel Plated Brass |
| Current rating | 10A |
| Housing material | PA66 |
| Moq | 1 |
| Mounting type | Panel |
| Operating temperature | -45°C to +105°C |
| Panel cut out | 46.8 x 27.8mm |
| Termination method | Tab |
| Type | C14 |
| Voltage rating | 250VAC |
