C14 IEC Fused and Switched Inlet Socket 10A
SKU 356073
MPN: SE-AS-303-1
Availability:
540 in stock
Original price
£2.28
-
Original price
£2.28
Original price
£2.28
£2.28
-
£2.28
Current price
£2.28

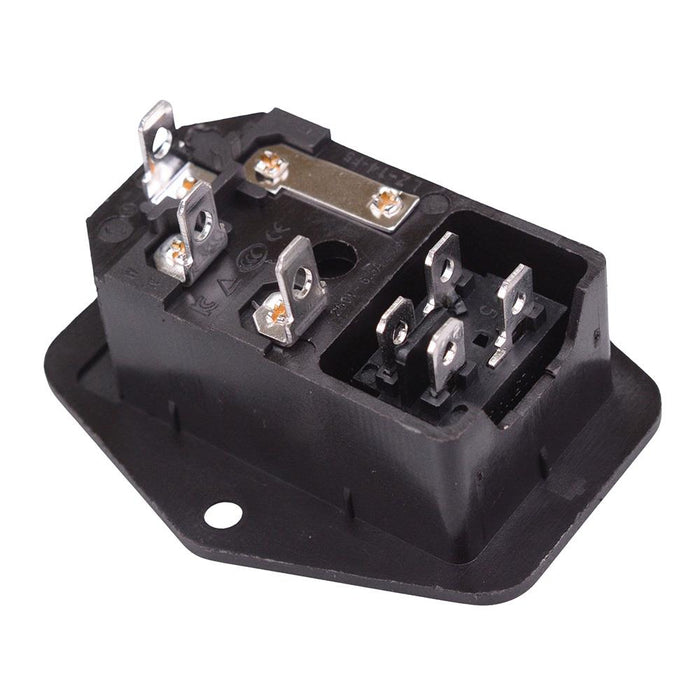

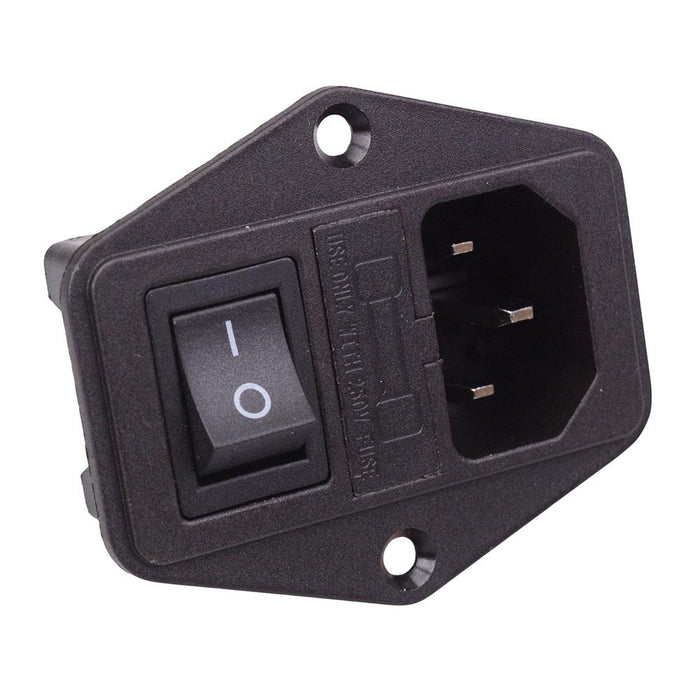

Fused and switched 3 pole C14 IEC chassis Inlet featuring a 10A 250VAC rating and 4.8mm quick connect terminals. The connector incorporates a DPST On-Off switch and the fuse holder accepts 5x20mm glass or ceramic fuses.
40mm fixing centres Panel cut-out: 54.3 x 28.5mm Rating: 10A 250VAC 4.8mm x 0.8mm quick terminals 5x20mm fuse size Includes DPST rocker switch Nickel plated brass contacts Mounting hole pitch: 40mm
Specification
| Back Order Lead Time | 30 Days |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Current Rating | 10A |
| Housing Material | PBT |
| Mounting Type | Panel |
| Operating Temperature | -45°C to +105°C |
| Termination Method | Quick Connect |
| Type | C14 |
| Voltage Rating | 250VAC |
