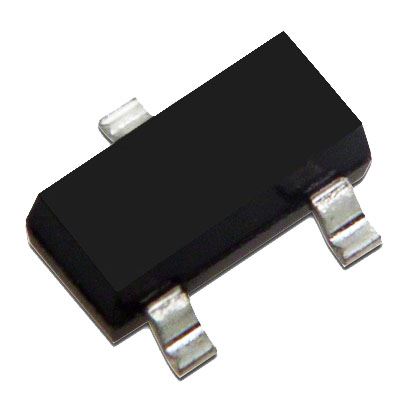

BSS138 MOSFET 50V Transistor N Channel SMD SOT23

SKU 551629

MPN: BSS138

Availability:
20 in stock
Original price £0.34 - Original price £0.34
Original price
£0.34 Inc VAT
£0.34 - £0.34
Current price £0.34 Inc VAT

The BSS138 MOSFET transistor is an N Channel Surface Mount transistor supplied in SOT-23 packaging. For further technical specifications please refer to the attached datasheet.

  • Low On-Resistance
  • Low Input/Output Leakage
  • Low Gate Threshold Voltage
  • Low Input Capacitance
  • Fast Switching Speed
  • Small Surface Mount Packaging
  • MOSFET 50V 200mA SOT23
Specification
Back order lead time 5 Days
Continuous drain current 0.2A
Drain source on resistance 3.5Ω
Drain source voltage 50V
Input capacitance 50pF
Maximum gate source voltage 1.5V
Maximum operating temperature 150°C
Moq 5
Mounting type Surface Mount
Package SOT23
Power dissipation 0.3W
Type N-Channel
