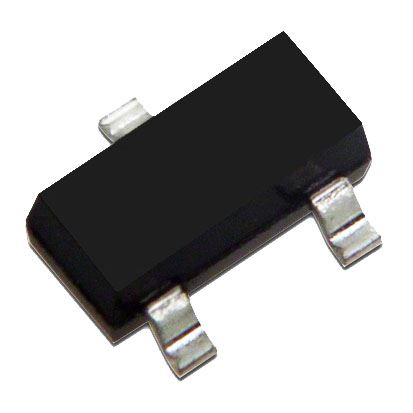

BSS123 MOSFET 100V Transistor N Channel SMD SOT23

SKU 551628

MPN: BSS123

Availability:
135 in stock
Original price £0.34 - Original price £0.34
Original price
£0.34 Inc VAT
£0.34 - £0.34
Current price £0.34 Inc VAT

The BSS123 MOSFET transistor is an N Channel Surface Mount transistor supplied in SOT-23 packaging. These N-Channel enhancement mode field effect transistors are produced using advanced trench technology. These products have been designed to minimize on-state resistance while providing rugged, reliable and fast switching performance. These products are particularly suited for low voltage, low current applications. For further technical specifications please refer to the attached datasheet.

  • Low Input/Output Leakage
  • Low Gate Threshold Voltage
  • Low Input Capacitance
  • Fast Switching Speed
  • Small Surface Mount Packaging
  • High Drain-Source Voltage Rating
  • Suitable for low voltage, low current applications such as; Small Servo Motor Control, Power MOSFET Gate Drivers & Switching Applications
  • MOSFET 100V 170mA SOT23
Specification
Back order lead time 5 Days
Continuous drain current 0.17A
Drain source on resistance
Drain source voltage 100V
Input capacitance 60pF
Maximum gate source voltage 2V
Maximum operating temperature 150°C
Moq 5
Mounting type Surface Mount
Package SOT23
Power dissipation 0.3W
Type N-Channel
