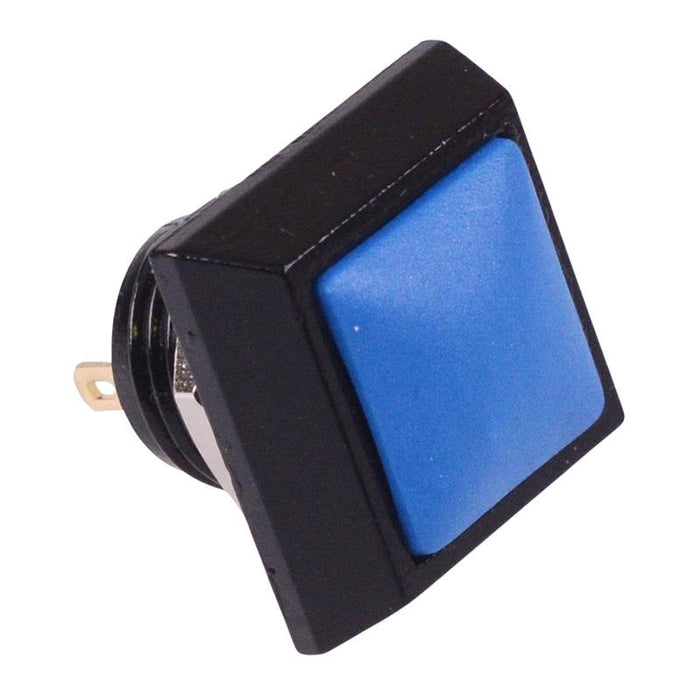

Blue Square Off-(On) Momentary 12mm Metal Push Button Switch IP65 SPST
SKU 490285
MPN: HBGQ12S-10/J/A/B
Availability:
96 in stock
Original price
£2.71
-
Original price
£2.71
Original price
£2.71
£2.71
£2.71
-
£2.71
Current price
£2.71

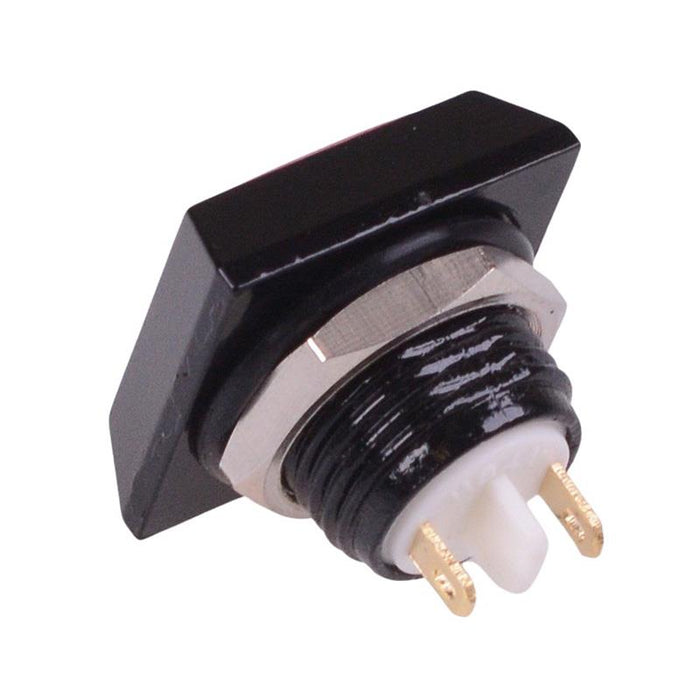

Blue momentary push button switch featuring a square actuator and normally open contacts. The switch features a zinc alloy housing and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.
Momentary operation SPST-NO contacts IP65 protection rating Solder terminals Panel cut-out: 12mm Panel thickness: 5mm max Rating: 3A 250V Dimensions: 20.2 x 17.6 x 17.6mm (height x width x length)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Material | Zinc Alloy |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +65°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 5mm Max |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
