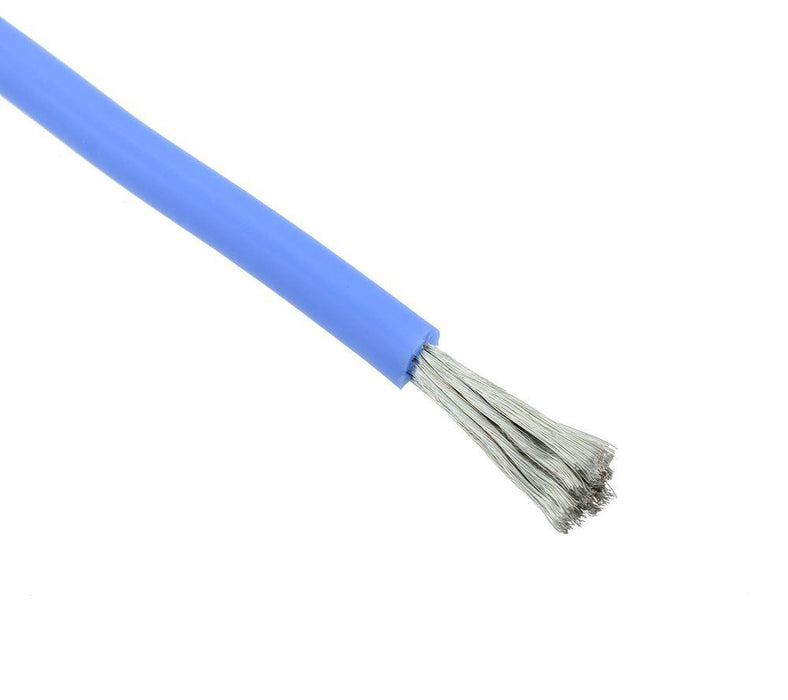

Blue Silicone Lead Wire 10AWG 1050/0.08mm (price per metre)

SKU 403022

MPN: 403022

Availability:
94 in stock
Original price £3.34 - Original price £3.34
Original price
£3.34 Inc VAT
£3.34 - £3.34
Current price £3.34 Inc VAT
Silicone insulated wire with a copper conductor suitable for a wide range of applications.

  • Wide temperature range
  • Flexible and lightweight
  • Rated voltage: 600V
  • 1050/0.08mm copper stranding
  • Cut to length in pieces up to 25 metres
  • Specification
    Back order lead time 120 Days
    Colour Blue
    Conductor cross section 5.4mm²
    Conductor diameter 3.06mm
    Conductor material Tinned Copper
    Conductor stranding 1050/0.08mm
    Current rating 140A
    Insulation material Silicone
    Insulation thickness 1.17mm
    Operating temperature -60°C to 200°C
    Overall diameter 5.4mm
    Voltage rating 600V
    Wire gauge 10AWG
