Blue Rectangle ‘Visi On’ Rocker Switch SPST R13-66A5-02

by SCI
SKU 551707

MPN: R13-66A5-02 Blue

Availability:
212 in stock
Original price £1.02 - Original price £1.02
Original price
£1.02 Inc VAT
£1.02 - £1.02
Current price £1.02 Inc VAT

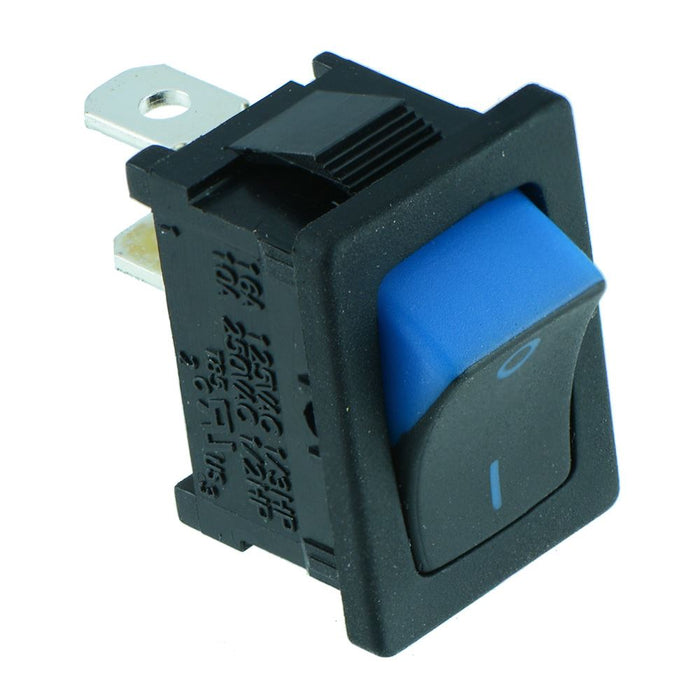

Rectangle rocker switch with SPST contacts and blue bi-colour actuator suitable for a range of applications.

  • SPST contacts
  • On-Off action
  • Snap-in mounting
  • 4.8mm silver plated brass contacts
  • Panel cut-out: 19.2 x 13mm
  • Maximum current: 10A
  • Maximum voltage: 250VAC
  • SCI R13-66 series
  • Specification
    Actuation Latching
    Back order lead time 120 Days
    Colour Blue
    Contact configuration SPST
    Contact rating 10A 250VAC
    Current rating 10A
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 19.2 x 13mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
