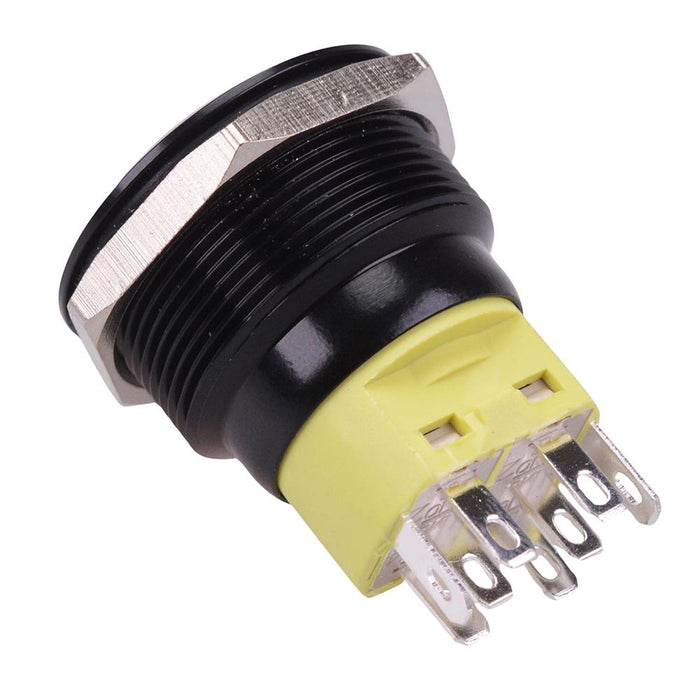

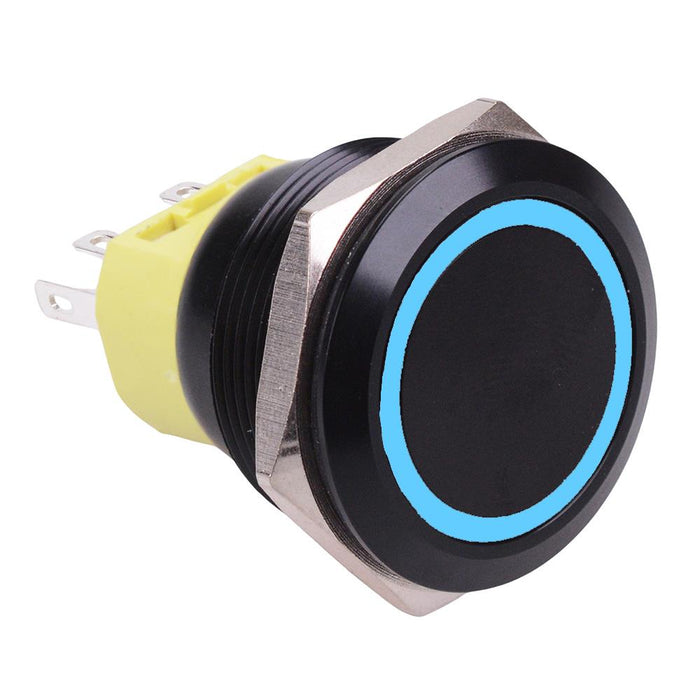

Blue On-(On) 25mm Black Vandal Momentary Push Button Switch 2NO/2NC 12V
SKU 486524
MPN: 486524
Availability:
Out of stock
Sold out
Original price
£15.09
-
Original price
£15.09
Original price
£15.09
Inc VAT
£15.09
-
£15.09
Current price
£15.09
Inc VAT
Vandal resistant 25mm momentary push button switch manufactured from zinc, featuring a blue LED and 2NO/2NC contacts. The switch features IP67 protection and is suitable for 12V applications.
Momentary On-(On) action Blue LED 12V illumination voltage IP67 protection rating 25mm panel cut-out diameter 2NO/2NC contacts 2.8mm terminals Rating: 5A 250VAC
Specification
| Actuation | Momentary |
| Back order lead time | 30 Days |
| Contact configuration | SPDT |
| Contact rating | 5A 250VAC |
| Current rating | 5A |
| Electrical life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Blue |
| Illumination voltage | 12VDC |
| Material | Zinc |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -20°C to +85°C |
| Panel cut out | 25mm |
| Protection level | IP67 |
| Switch operation | On-(On) |
