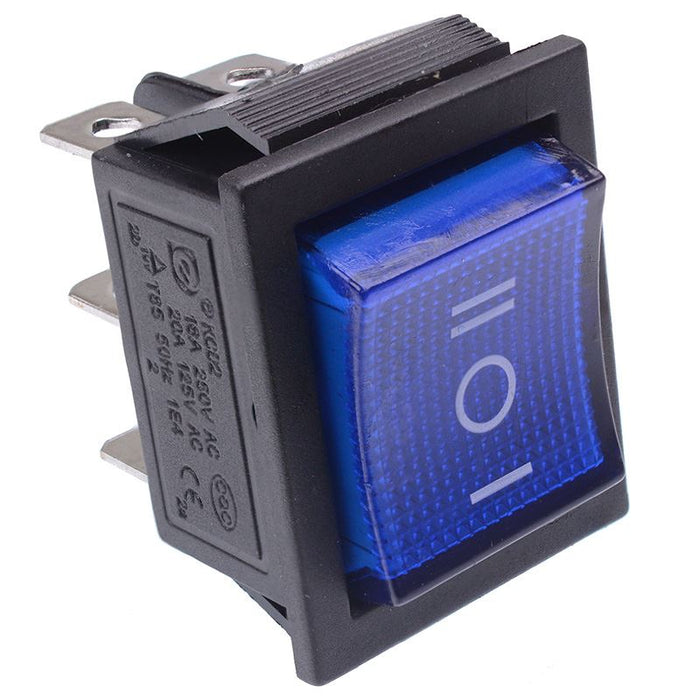

Blue On-Off-On illuminated Rectangle Rocker Switch DPDT 230V
SKU 482828
MPN: 482828
Availability:
224 in stock
Original price
£1.21
-
Original price
£1.21
Original price
£1.21
£1.21
£1.21
-
£1.21
Current price
£1.21
Blue illuminated rectangle rocker switch featuring DPDT contacts and On-Off-On action. The switch features quick connect terminals and is suitable for domestic, industrial and commercial applications.
Blue illumination On-off-on action DPDT contacts 220VAC illumination 6.3mm quick connect terminals 28.5 x 21.5mm panel cut-out Rating: 20A 125VAC, 16A 250VAC Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Colour | Blue |
| Contact Configuration | DPDT |
| Contact Rating | 16A 250VAC, 20A 125VAC |
| Current Rating | 20A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 230VAC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 28.5 x 21.5mm |
| Switch Operation | On-Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
