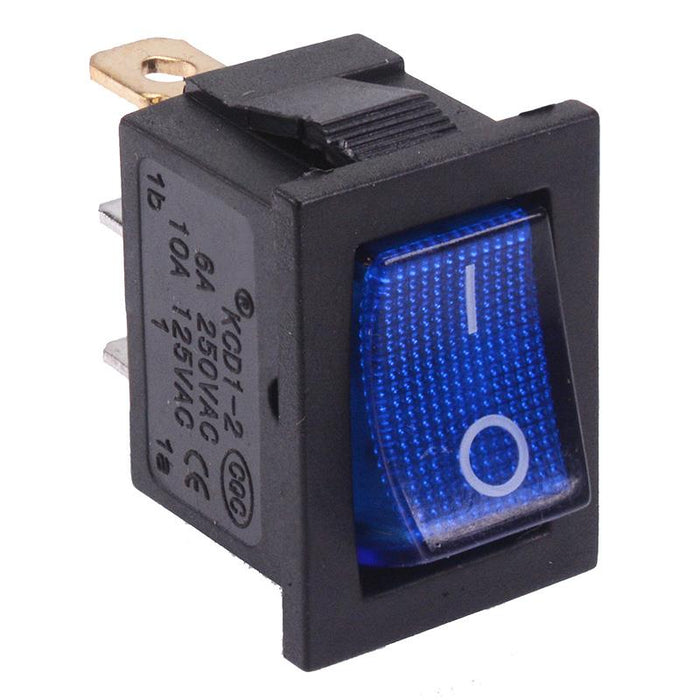

Blue On-Off illuminated Rectangle Rocker Switch SPST 230V

SKU 482810

MPN: 482810

Availability:
269 in stock
Original price £0.63 - Original price £0.63
Original price
£0.63 Inc VAT
£0.63 - £0.63
Current price £0.63 Inc VAT
Blue 230V illuminated rectangle rocker switch with SPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of domestic and commerical applications.

  • On-Off action
  • SPST contacts
  • 230V illumination
  • 4.8mm quick connect terminals
  • Panel cut-out: 19.2 x 13mm
  • Dimensions: 25 x 21 x 15mm (Height x Length x Width)
  • Rating: 10A 125VAC, 6A 250VAC
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Colour Blue
    Contact configuration SPST
    Contact rating 6A 250VAC, 10A 125VAC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated Yes
    Illumination colour Blue
    Illumination voltage 230VAC
    Material PA66
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 19.2 x 13mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
