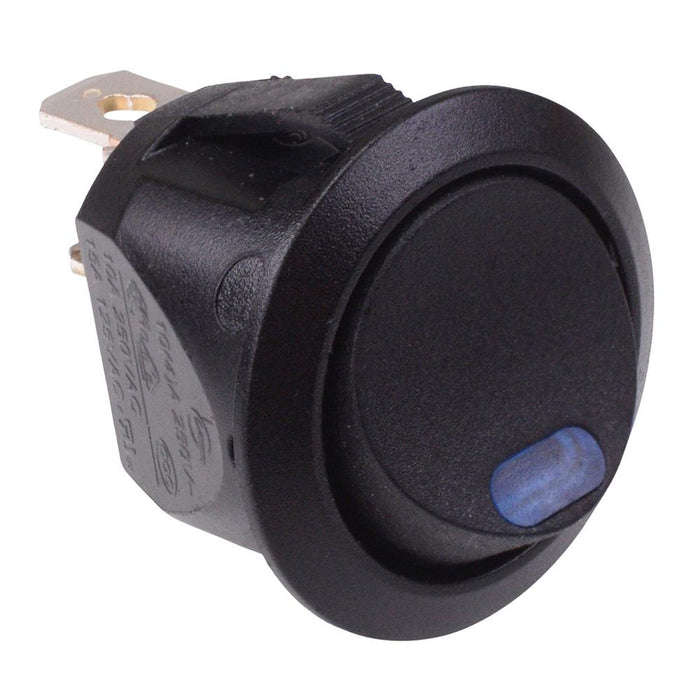

Blue On-Off 12V illuminated Round Rocker Switch SPST 10A

SKU 487430


507 in stock
Original price £1.17 - Original price £1.17
Original price
£1.17 Inc VAT
£1.17 - £1.17
Current price £1.17 Inc VAT
Blue On-Off illuminated rocker switch featuring a 20.2mm panel cut-out and SPST contacts. The switch features a 10A 250VAC rating and quick connect terminals, suitable for a wide range of applications.

  • SPST contacts
  • Blue 12VDC LED
  • On-Off function
  • Rating: 10A 250VAC, 15A 125VAC
  • Panel cut-out: 20.2mm
  • Diameter: 23mm
  • 4.8mm quick connect terminals
  • Specification
    Actuation Latching
    Back order lead time 45 Days
    Colour Blue
    Contact configuration SPST
    Contact material Silver Alloy
    Contact rating 6A 250VAC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated Yes
    Illumination colour Blue
    Illumination voltage 12VDC
    Material PA66
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -20°C to +85°C
    Panel cut out 20.2mm
    Panel thickness 0.8-3mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
