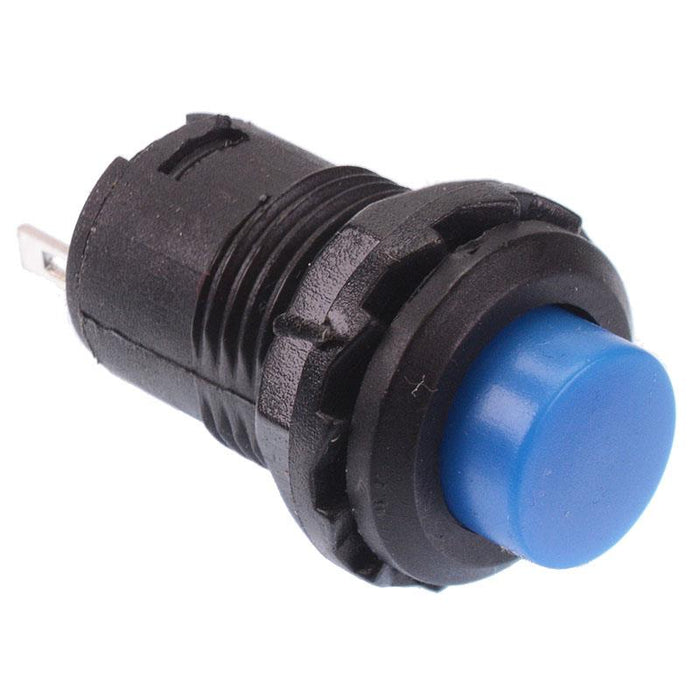

Blue Off(On) Momentary Round 12mm Switch SPST
SKU 103113
MPN: 103113
Availability:
1885 in stock
Original price
£0.44
-
Original price
£0.44
Original price
£0.44
Inc VAT
£0.44
-
£0.44
Current price
£0.44
Inc VAT
Low cost round push button switches with a momentary operation and solder lug terminals ideal for a wide range of applications.
Suitable for panel mounting Solder lug terminals Momentary Off-(On) operation SPST contacts 12mm panel cut-out Dimensions: 30.5 x 16.5mm (Height x Diameter) Maximum Panel Thickness: 5mm
Specification
| Actuation | Momentary |
| Back order lead time | 40 Days |
| Colour | Blue |
| Contact configuration | SPST |
| Contact rating | 1.5A 250VAC |
| Current rating | 1.5A |
| Electrical life | 10,000+ Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | PA66 |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -20°C to +65°C |
| Panel cut out | 12mm |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 250VAC |
