Blue LED On-(On) Momentary 19mm Black Vandal Resistant Push Switch NO/NC
SKU 482299
MPN: 482299
Availability:
124 in stock
Original price
£6.92
-
Original price
£6.92
Original price
£6.92
Inc VAT
£6.92
-
£6.92
Current price
£6.92
Inc VAT

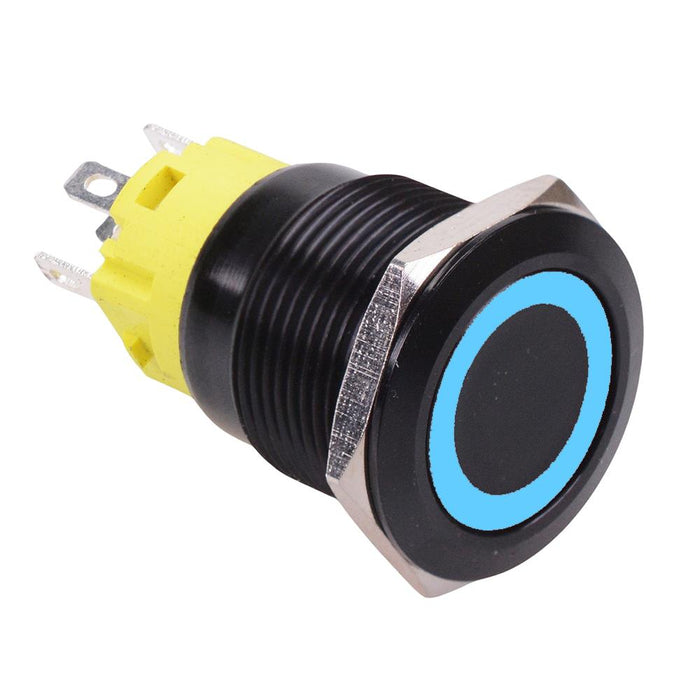

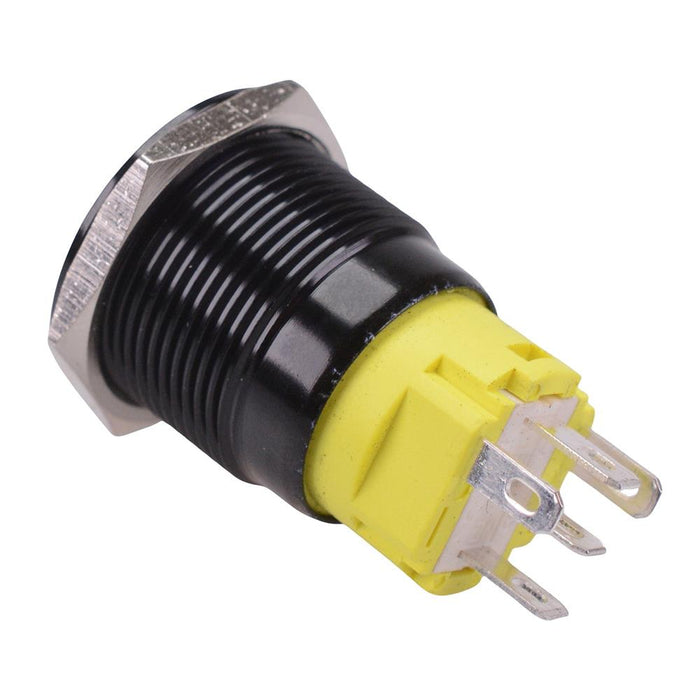

Vandal resistant push button switch manufactured from black metal, featuring a blue LED and NO/NC contacts. The switch features IP67 protection and is suitable for 12V applications.
Momentary On-(On) action Blue LED 12V illumination voltage IP67 protection rating 19mm panel cut-out diameter NO/NC contacts Solder terminals Rating: 5A 250VAC
Specification
| Actuation | Momentary |
| Back order lead time | 30 Days |
| Colour | Blue |
| Contact configuration | SPDT |
| Contact rating | 5A 250VAC |
| Current rating | 5A |
| Electrical life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Blue |
| Illumination voltage | 12VDC |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 19mm |
| Protection level | IP67 |
| Switch operation | On-(On) |
| Terminal type | Solder |
| Voltage rating | 250VAC |
