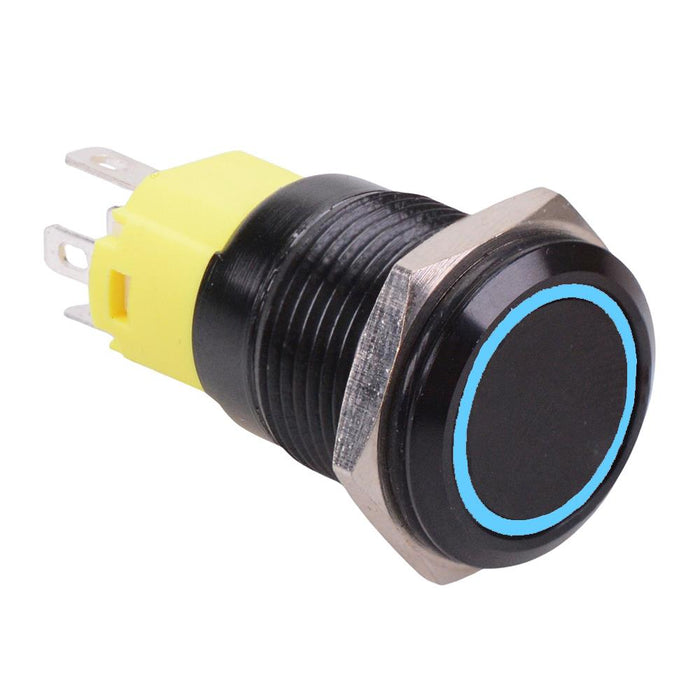

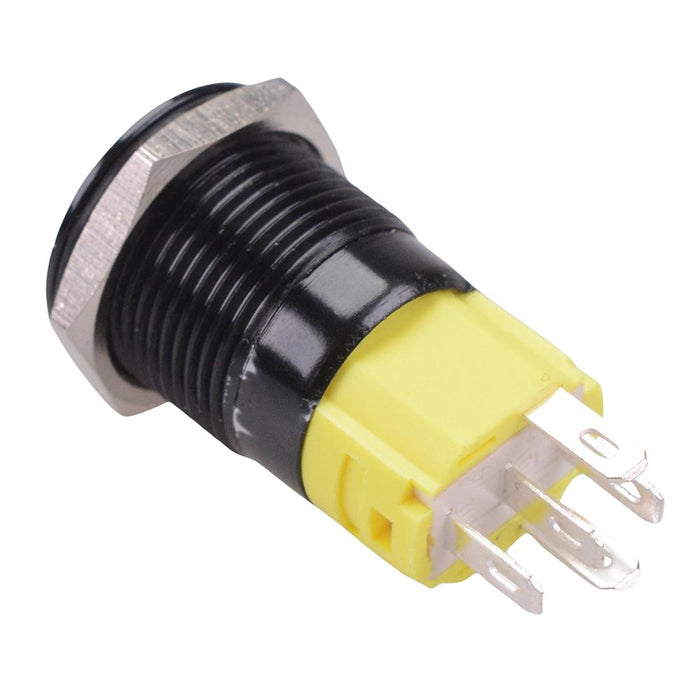

Blue LED On-(On) Momentary 16mm Black Vandal Resistant Push Switch NO/NC

SKU 481598

MPN: 481598

Availability:
67 in stock
Original price £6.44 - Original price £6.44
Original price
£6.44 Inc VAT
£6.44 - £6.44
Current price £6.44 Inc VAT
Vandal resistant push button switch manufactured from zinc, featuring a blue LED and NO/NC contacts. The switch features IP65 protection and is suitable for 12V applications.

  • Momentary On-(On) action
  • Blue LED
  • 12V illumination voltage
  • IP65 protection rating
  • 16mm panel cut-out diameter
  • NO/NC contacts
  • 2.8mm terminals
  • Rating: 3A 250VAC
  • Specification
    Actuation Momentary
    Back order lead time 30 Days
    Colour Blue
    Contact configuration SPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 50,000 Cycles
    Illuminated Yes
    Illumination colour Blue
    Illumination voltage 12VDC
    Material Zinc Alloy
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 16mm
    Protection level IP65
    Switch operation On-(On)
    Terminal type Quick Connect
    Voltage rating 250VAC
