Blue LED On-On Latching 22mm Vandal Resistant Push Switch NO/NC

SKU 481778

MPN: 481778

Availability:
Out of stock
Sold out
Original price £9.89 - Original price £9.89
Original price
£9.89 Inc VAT
£9.89 - £9.89
Current price £9.89 Inc VAT

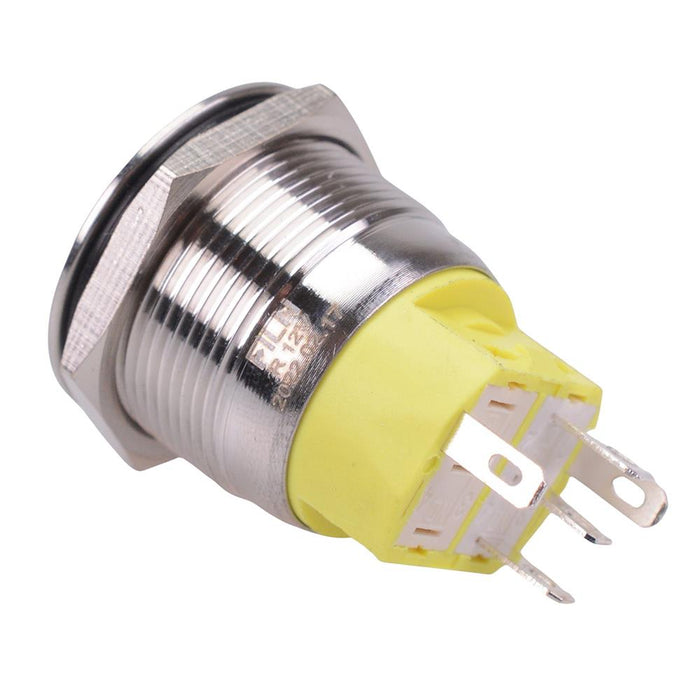

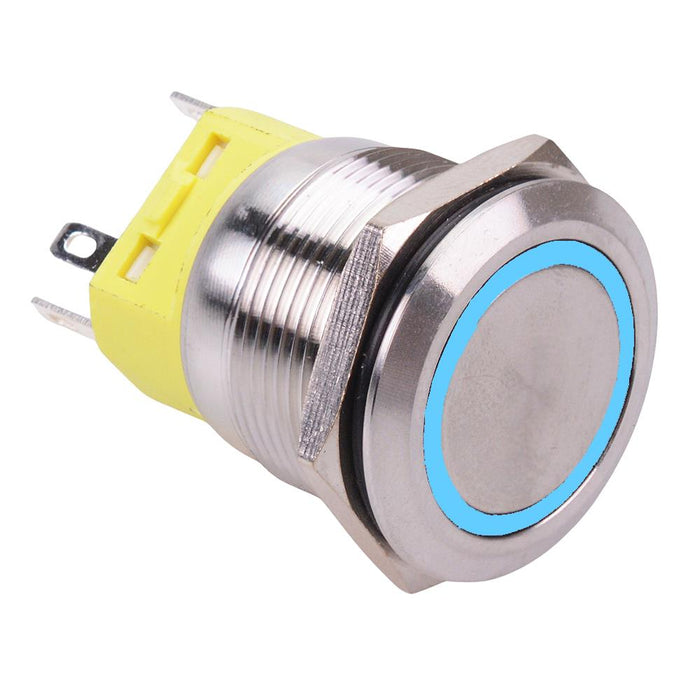

Vandal resistant push button switch manufactured from stainless steel, featuring a blue LED and NO/NC contacts. The switch features IP67 protection and is suitable for 12V applications.

  • Latching On-On action
  • Blue LED
  • 12V illumination voltage
  • IP67 protection rating
  • 22mm panel cut-out diameter
  • NO/NC contacts
  • 2.8mm terminals
  • Rating: 5A 250VAC
  • Specification
    Actuation Latching
    Back order lead time 30 Days
    Contact configuration SPDT
    Contact rating 5A 250VAC
    Current rating 5A
    Electrical life 50,000 Cycles
    Illuminated Yes
    Illumination colour Blue
    Illumination voltage 12VDC
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 22mm
    Protection level IP65
    Switch operation On-On
    Terminal type Solder
    Voltage rating 250VAC
