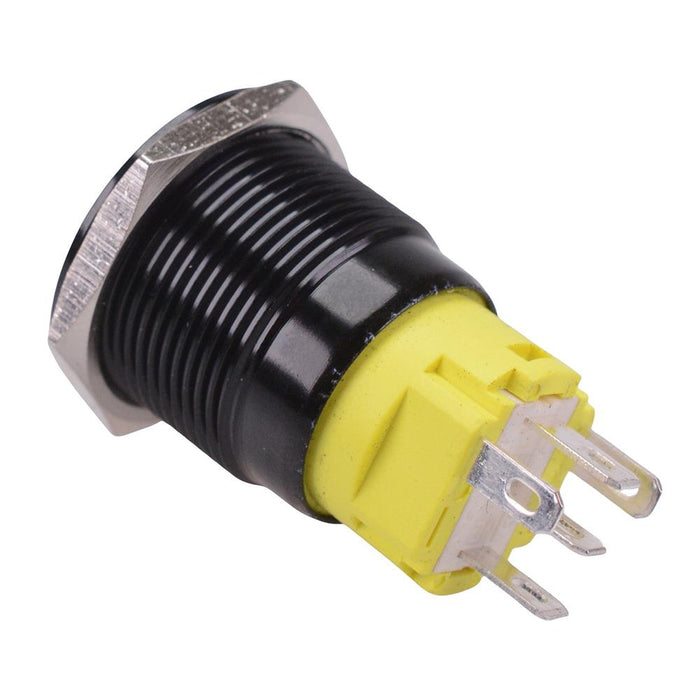

Blue LED On-On Latching 19mm Black Vandal Resistant Push Button Switch SPDT
SKU 482298
MPN: 482298
Availability:
246 in stock
Original price
£7.44
-
Original price
£7.44
Original price
£7.44
£7.44
-
£7.44
Current price
£7.44
Latching vandal resistant 19mm push button switch featuring a blue 12V LED and SPDT contacts. The switch is manufactured from zinc and features IP65 protection rating, making it suitable for a wide range of automotive and other 12V applications.
Latching action Blue LED 12V illumination voltage IP65 protection rating 19mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC Dimensions: 35.1 x 22mm (length x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Colour | Blue |
| Contact Configuration | SPDT |
| Contact Rating | 5A 250VAC |
| Current Rating | 5A |
| Electrical Life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 12VDC |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 19mm |
| Protection Level | IP67 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
