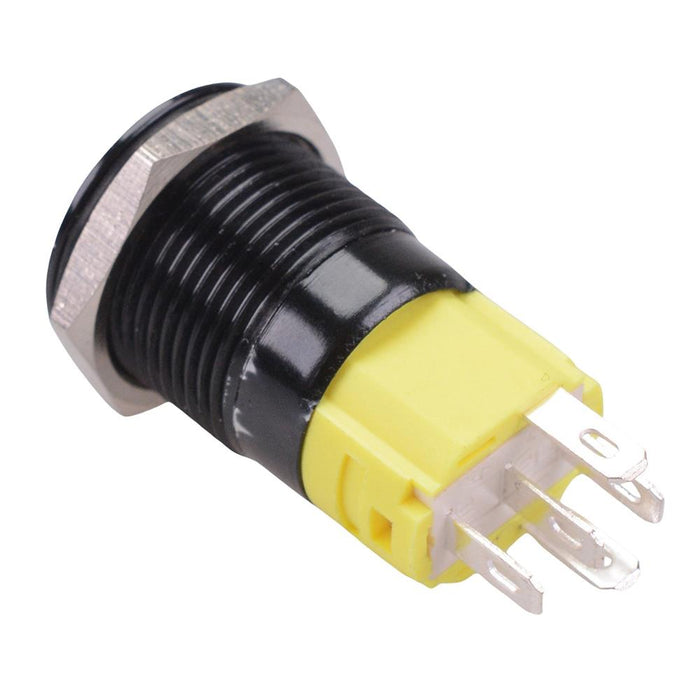

Blue LED On-On Latching 16mm Black Vandal Resistant Push Button Switch SPDT
SKU 481596
MPN: 481596
Availability:
61 in stock
Original price
£5.93
-
Original price
£5.93
Original price
£5.93
£5.93
-
£5.93
Current price
£5.93
Latching vandal resistant push button switch featuring a blue 12V LED and SPDT contacts. The switch is manufactured from zinc and features IP65 protection rating, making it suitable for a wide range of automotive and other 12V applications.
Latching action Blue LED 12V illumination voltage IP65 protection rating 16mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 3A 250VAC Dimensions: 36.7 x 18mm (length x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Colour | Blue |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 12VDC |
| Material | Zinc Alloy |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 16mm |
| Protection Level | IP65 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
