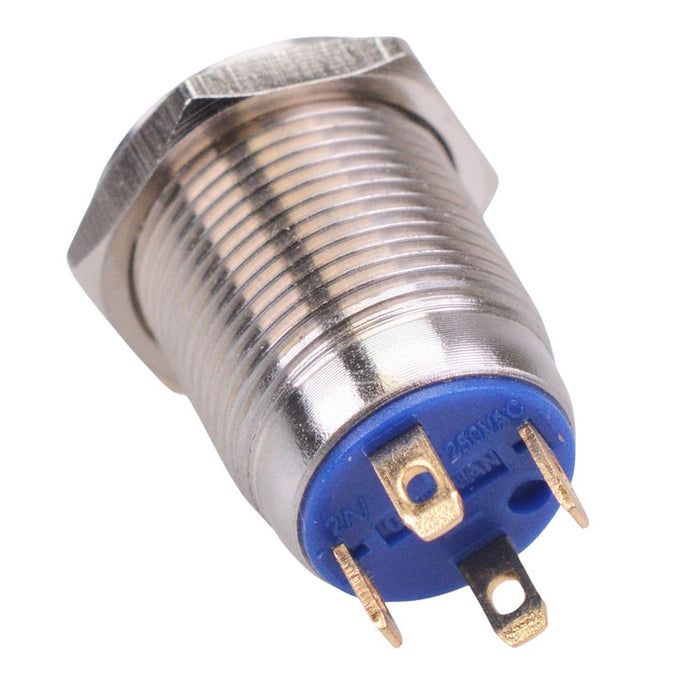

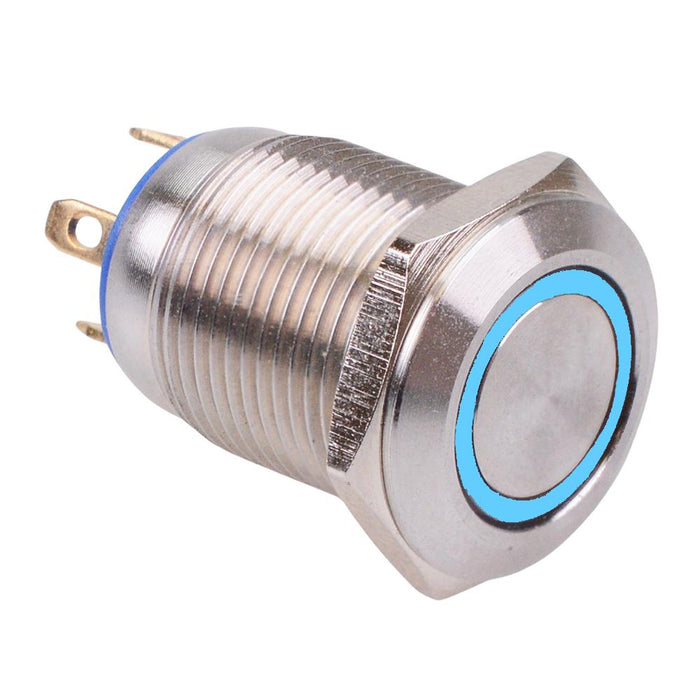

Blue LED Off-(On) Momentary 12mm Vandal Resistant Push Switch

SKU 481603

MPN: 481603

Availability:
25 in stock
Original price £6.17 - Original price £6.17
Original price
£6.17 Inc VAT
£6.17 - £6.17
Current price £6.17 Inc VAT
Vandal resistant push button switch manufactured from stainless steel, featuring a blue LED and NO contacts. The switch features IP65 protection and is suitable for 12V applications.

  • Momentary Off-(On) action
  • Blue LED
  • 12V illumination voltage
  • IP65 protection rating
  • 12mm panel cut-out diameter
  • NO contacts
  • Solder terminals
  • Rating: 2A 36VDC
  • Specification
    Actuation Momentary
    Back order lead time 30 Days
    Colour Blue
    Contact configuration SPDT
    Contact rating 2A 36VDC
    Current rating 2A
    Electrical life 50,000 Cycles
    Illuminated Yes
    Illumination colour Blue
    Illumination voltage 12VDC
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 12mm
    Protection level IP65
    Switch operation Off-(On)
    Terminal type Quick Connect
    Voltage rating 36VDC
