Blue LED 24V On-On Latching 16mm Vandal Push Switch SPDT
SKU 484985
MPN: 484985
Availability:
25 in stock
Original price
£5.90
-
Original price
£5.90
Original price
£5.90
Inc VAT
£5.90
-
£5.90
Current price
£5.90
Inc VAT

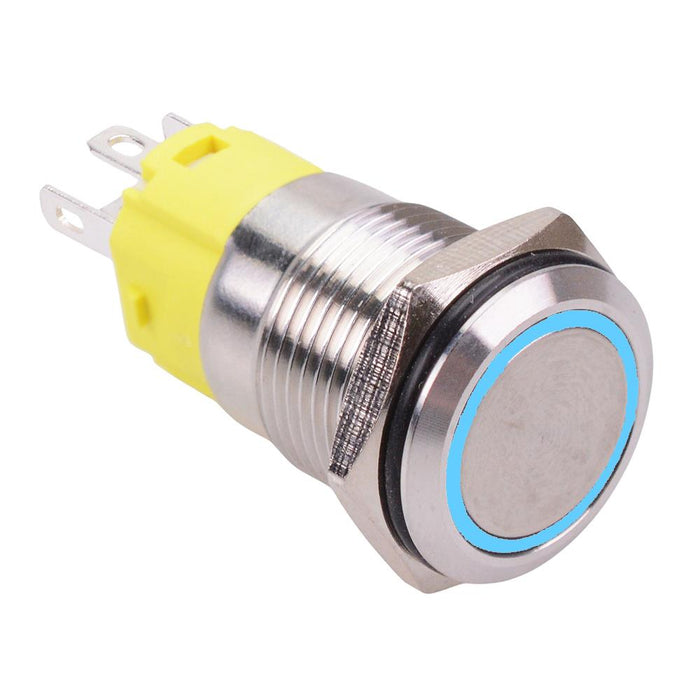

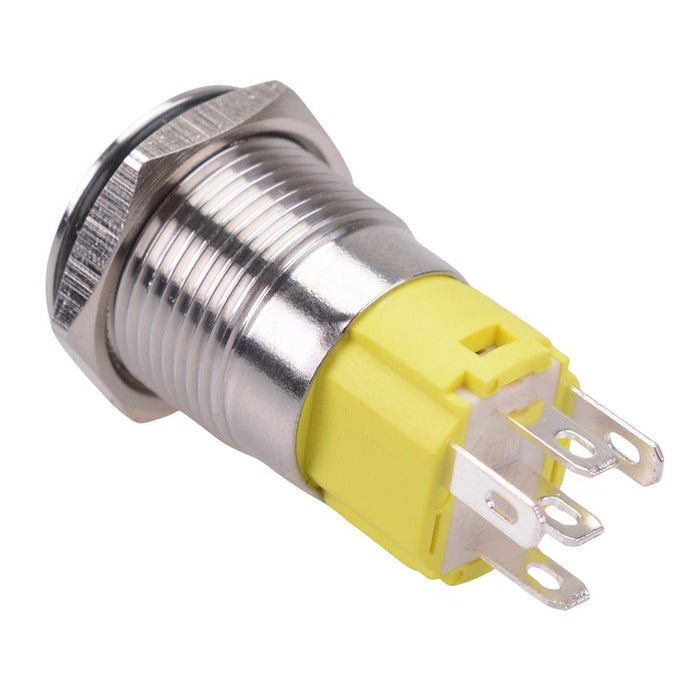

Latching vandal resistant push button switch manufactured from stainless steel, featuring a blue LED and NO/NC contacts. The switch features IP65 protection rating and is suitable for 24V applications including automotive.
Latching On-On action Blue LED 24V illumination voltage IP65 protection rating 16mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 3A 250VAC
Specification
| Actuation | Latching |
| Back order lead time | 30 Days |
| Colour | Blue |
| Contact configuration | SPDT |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Electrical life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Blue |
| Illumination voltage | 24VDC |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 16mm |
| Protection level | IP65 |
| Switch operation | On-On |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
