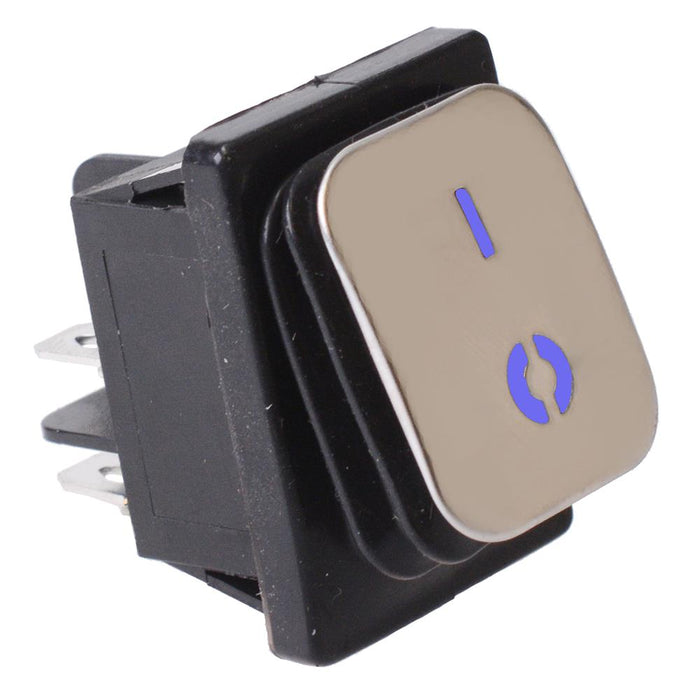

Blue illuminated 230V Stainless Steel Rectangle Rocker Switch DPST
SKU 490478
MPN: FL3-KCD4-201N-5K_S Blue 230V
Availability:
84 in stock
Original price
£2.39
-
Original price
£2.39
Original price
£2.39
£2.39
£2.39
-
£2.39
Current price
£2.39
Blue illuminated rocker switch featuring an attractive stainless steel actuator and IP65 protection rating. The switch features quick connect terminals and is suitable for a wide range of snap-in mounting applications including industrial, appliances etc.
Blue 230V illumination DPST contacts 6.35mm quick connect terminals IP65 protection rating Rating: 30A 250VAC Panel cut-out: 28 x 22mm Dimensions: 44.0 x 28.1 x 38.3mm (height x width x length)
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Colour | Blue |
| Contact Configuration | DPST |
| Contact Rating | 30A 250VAC |
| Current Rating | 30A |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 230VAC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Panel Cut Out | 28 x 22mm |
| Protection Level | IP67 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
