Blue Actuator On-Off Large Rectangle Rocker Switch DPST 15A
SKU 484441
MPN: 484441
Availability:
495 in stock
Original price
£1.26
-
Original price
£1.26
Original price
£1.26
£1.26
£1.26
-
£1.26
Current price
£1.26

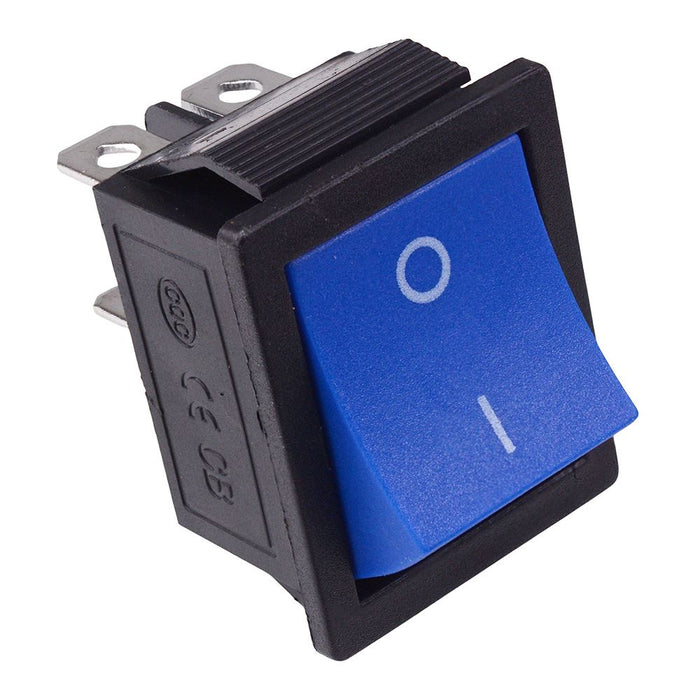

Blue rectangle rocker switch featuring DPST contacts and On-Off action. The switch features 6.3mm terminals and is suitable for various applications including use with Henry Hoovers.
On-off action DPST contacts 6.3mm quick connect terminals 28.5 x 21.5mm panel cut-out Maximum current: 15A Maximum voltage: 250VAC Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Contact Configuration | DPST |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000+ Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 28.5 x 21.5mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
