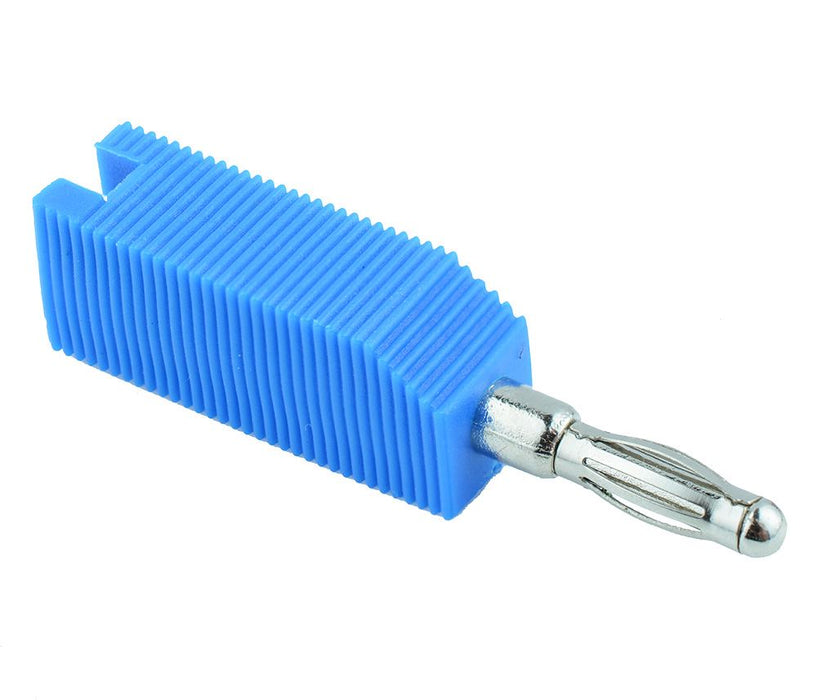

Blue 4mm Stackable Test Connector

SKU 356060

MPN: 356060

Availability:
137 in stock
Original price £0.41 - Original price £0.41
Original price
£0.41 Inc VAT
£0.41 - £0.41
Current price £0.41 Inc VAT
4mm banana plugs with an inline stacking facility suitable for a range of test and general applications.

  • Screw termination
  • Nickel plated stainless steel spring
  • Maximum current rating: 10A
  • Maximum voltage rating: 30VAC, 60VDC
  • Cable diameter: 3.5mm
  • Rigid housing
  • Dimensions: 44.5 x 9 x 13mm (Length x Width x Height)
  • Specification
    Back order lead time 30 Days
    Colour Blue
    Contact material Nickel Plated Brass
    Current rating 10A
    Mounting type Cable
    Number of poles 1
    Operating temperature -30°C to +70°C
    Termination method Screw
    Voltage rating 60VDC / 30VAC
