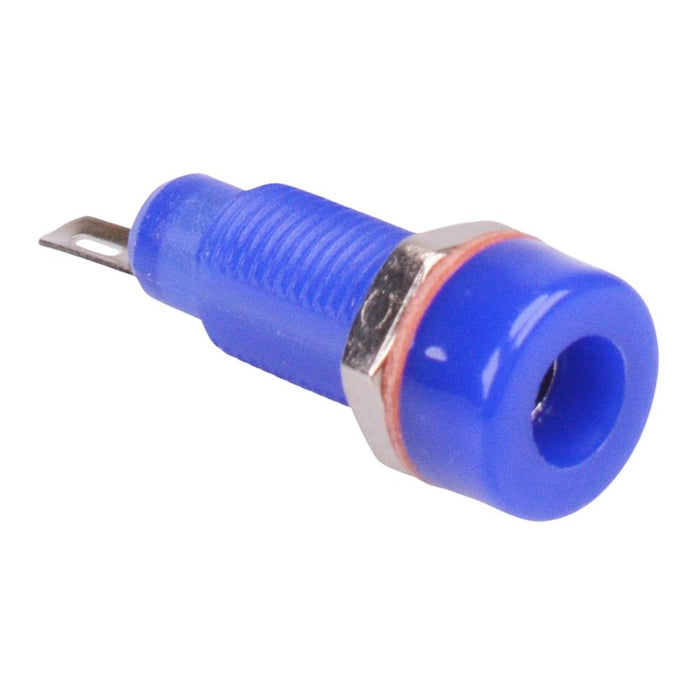

Blue 4mm Panel Mount Test Socket 10A R1-22
by SCI
SKU 491370
MPN: R1-22-U
Availability:
264 in stock
Original price
£0.66
-
Original price
£0.66
Original price
£0.66
£0.69
£0.69
-
£0.69
Current price
£0.69
Blue R1-22 4mm panel mount test socket designed for mating with standard banana plugs. The connector features solder terminals and is suitable for test and prototype applications.
Size: 4mm Panel cut-out: 8.2mm Current rating: 10A Solder termination Panel thickness: 0.5mm-10mm Dimensions: 30.9 x 11mm (length x diameter)
Specification
| Back Order Lead Time | 150 Days |
| Colour | Blue |
| Contact Material | Nickel Plated Brass |
| Current Rating | 10A |
| Housing Material | Nylon |
| Length | 30.9mm |
| MOQ | 1 |
| Mounting Type | Panel |
| Number of Poles | 1 |
| Operating Temperature | -20°C to +80°C |
| Panel Cut Out | 8.2mm |
| Termination Method | Solder |
