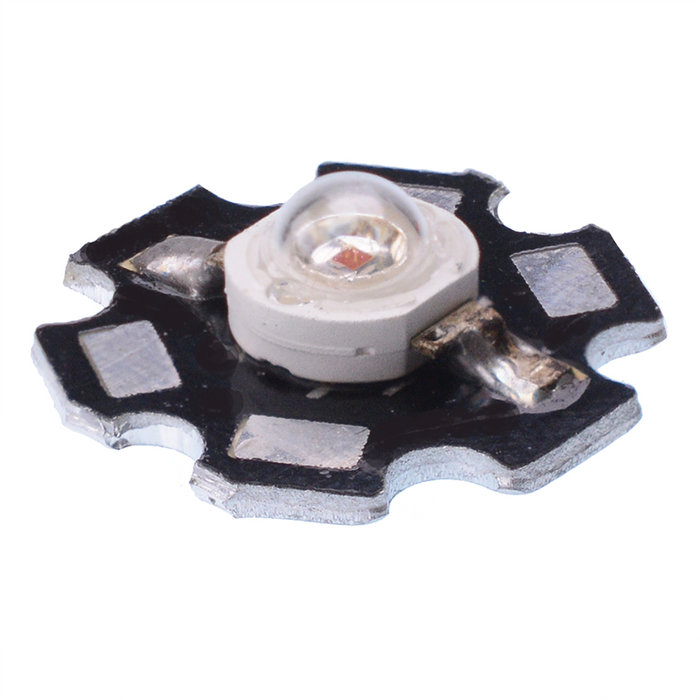

Blue 3W Star High Power LED 35lm 135°
by Luckylight
SKU 490463
MPN: HP70NBD
Availability:
362 in stock
Original price
£0.80
-
Original price
£0.80
Original price
£0.80
£0.80
£0.80
-
£0.80
Current price
£0.80
Blue high power 3W LEDs featuring a high luminous flux, mounted to a heatsink for dissipating heat. The LEDs feature a low profile design with a small package suitable for a range of applications including backlighting, general illumination and indication.
Luminous flux: 35lm Wavelength: 470nm Viewing angle: 135° Forward voltage: 3.4V Forward current: 700mA, 1000mA peak Excellent weather resistance Long lifespan Width: 19.9mm (across flats) Height: 6.65mm
Specification
| Back Order Lead Time | 40 Days |
| Colour | Blue |
| Diameter | 8.0mm |
| Forward Current | 700mA |
| Forward Voltage | 3.4V |
| Lens Colour | Clear |
| Lens Shape | Dome |
| Luminous Flux | 35lm |
| Luminous Intensity | 35lm |
| MOQ | 1 |
| Mounting Style | Surface Mount |
| Number of Pins | 2 |
| Operating Temperature | -40°C to 85°C |
| Package | PCB Substrate |
| Packaging | Bulk |
| Power Dissipation | 2660mW |
| Power Rating | 3W |
| Viewing Angle | 135° |
| Wavelength | 470nm |
