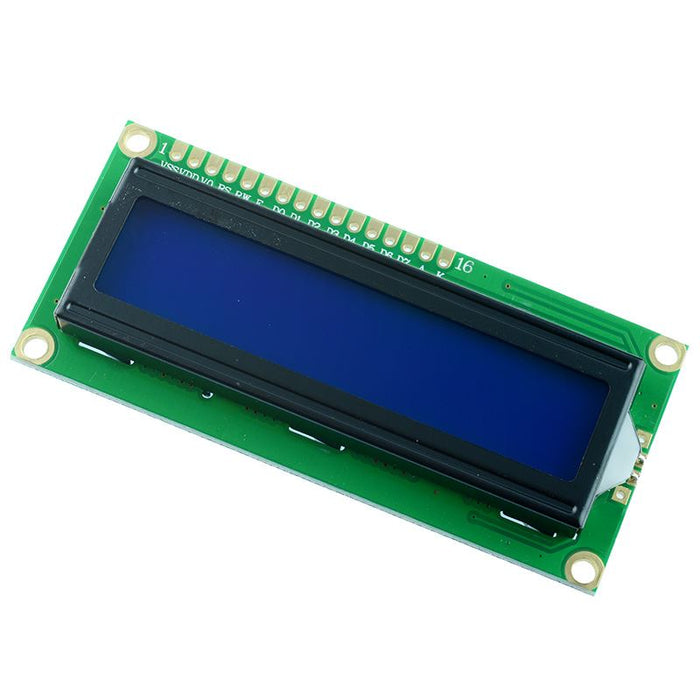

Blue 16x2 LCD Display Module HD44780

SKU 481108

MPN: 481108

Availability:
44 in stock
Original price £4.41 - Original price £4.41
Original price
£4.41 Inc VAT
£4.41 - £4.41
Current price £4.41 Inc VAT
Yellow/green 16x2 LCD module featuring 2 rows consisting each of 16 characters. The module is compatible with the Hitachi HD44780 controller, and is commonly used in Arduino and other microcontroller projects.

  • White characters on blue background
  • Supply voltage: 5V DC
  • Module dimensions: 80 x 36 x 11mm
  • Display area: 66 x 16mm

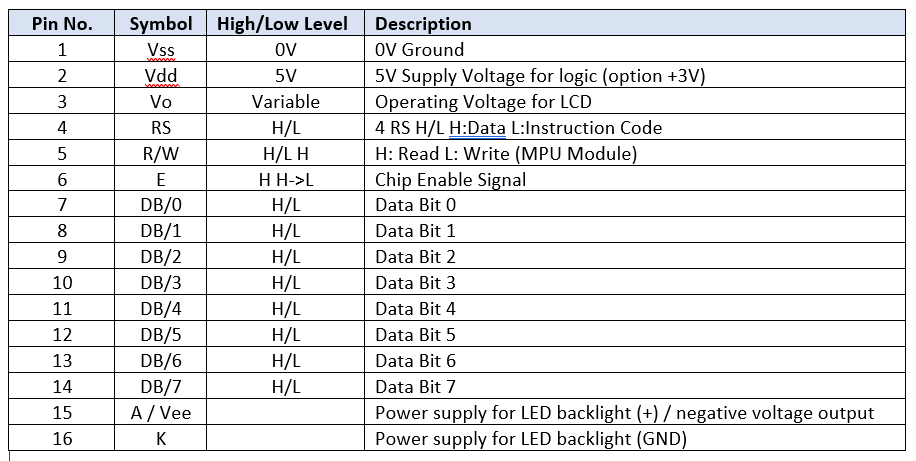

  • Pin No. Symbol High/Low Level Description
    1 Vss 0V 0V Ground
    2 Vdd 5V 5V Supply Voltage for logic (option +3V)
    3 Vo Variable Operating voltage for LCD
    4 RS H/L 4 RS H/L H:DATA L:Instruction code
    5 R/W H/L H H:Read L:Write (MPU Module)
    6 E H H->L Chip enable signal
    7 DB/0 H/L Data bit 0
    8 DB/1 H/L Data bit 1
    9 DB/2 H/L Data bit 2
    10 DB/3 H/L Data bit 3
    11 DB/4 H/L Data bit 4
    12 DB/5 H/L Data bit 5
    13 DB/6 H/L Data bit 6
    14 DB/7 H/L Data bit 7
    15 A / Vee Power supply for LED backlight ( + ) / Negative voltage output
    16 K Power supply for LED backlight (GND )
    Specification
    Back order lead time 30 Days
    Characters 16
    Display area 66 x 16mm
    Lines 2
    Module size 80 x 36 x 11mm
    Supply voltage 5V
