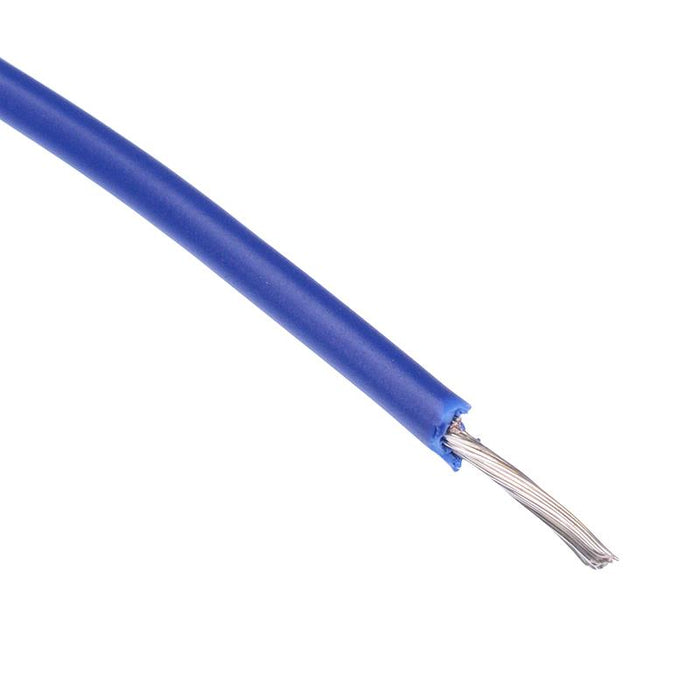

Blue UL1015 14AWG 41/0.25mm Tinned Copper Stranded Wire (price per metre)
SKU 404003
MPN: 404003
Availability:
Only 3 left!
Original price
£1.26
-
Original price
£1.26
Original price
£1.26
£1.26
£1.26
-
£1.26
Current price
£1.26
Blue 14AWG multi-stranded copper wire featuring PVC insulation manufactured to UL1015 specification. The PVC insulation provides excellent resistance to oil, petrol, diesel and high temperatures. The cable is suitable for automotive and various other applications requiring a high performance wire.
Overall diameter: 3.5mm Wide temperature range Tinned copper conductor Rated voltage: 600V 41/0.25mm copper stranding Cut to length in pieces up to 25 metres
Specification
| Back Order Lead Time | 30 Days |
| Colour | Blue |
| Conductor Cross Section | 2.08mm² |
| Conductor Diameter | 1.88mm |
| Conductor Material | Tinned Copper |
| Conductor Stranding | 41/0.25mm |
| Current Rating | 33A |
| Insulation Material | PVC |
| Insulation Thickness | 0.79mm |
| Operating Temperature | -30°C to 105°C |
| Overall Diameter | 3.5mm |
| Voltage Rating | 600V |
| Wire Gauge | 14AWG |
