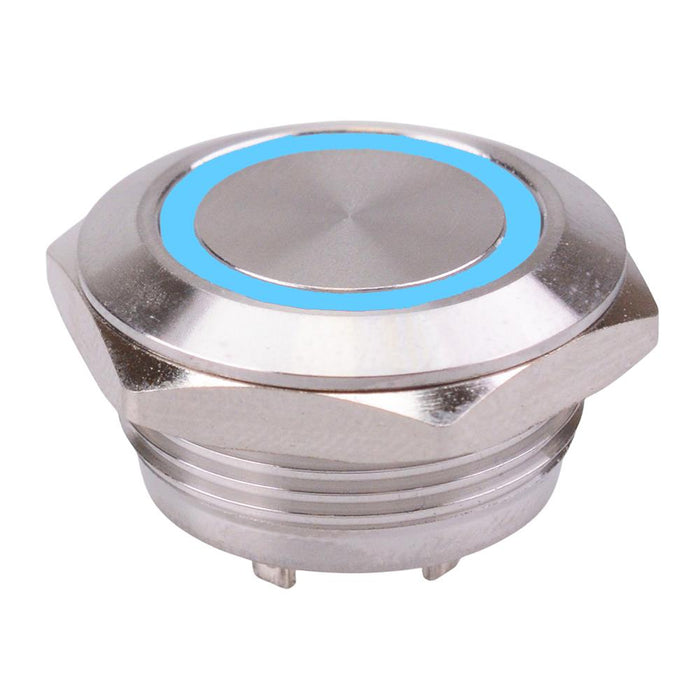

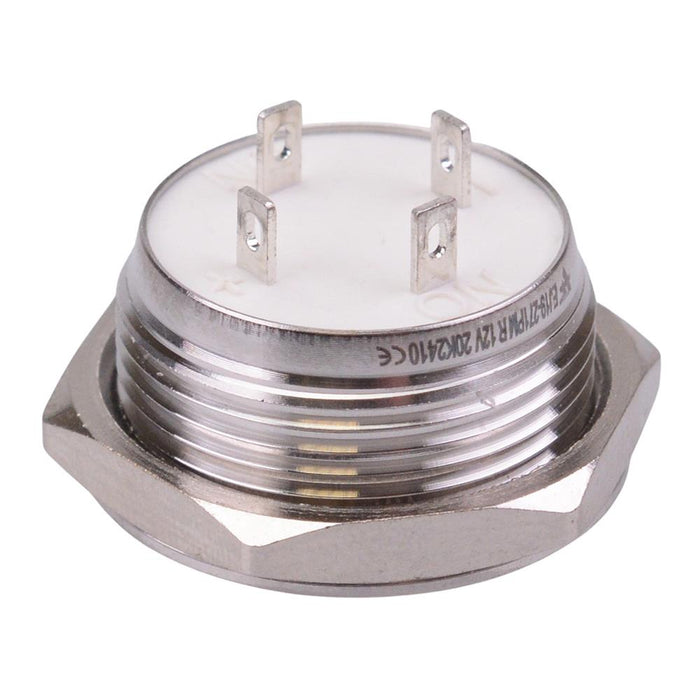

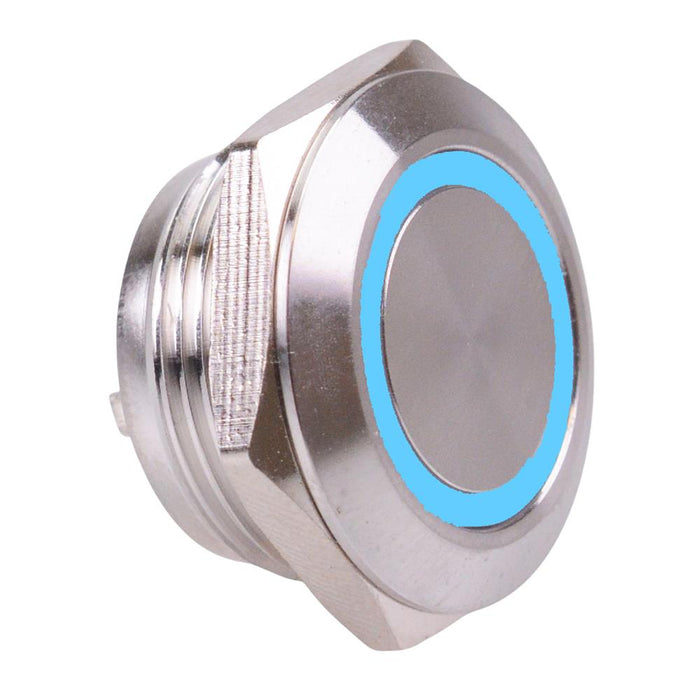

Blue 12V Vandal Resistant Off-(On) Momentary 19mm Ultra Short Switch SPST

by Langir
SKU 482552

MPN: L19U-FMSRB12V

Availability:
43 in stock
Original price £8.52 - Original price £8.52
Original price
£8.52 Inc VAT
£8.52 - £8.52
Current price £8.52 Inc VAT
Short body anti vandal momentary push button switch manfuactured from stainless steel, featuring a blue LED. The switch features NO / NC contacts and requires a 19mm panel cut-out making it suitable for 12V applications with limited space behind the panel.

  • Momentary switch action
  • SPST-NO contacts
  • Blue 12V LED
  • Panel cut-out: 19mm
  • Maximum panel thickness: 3mm
  • Rating: 50mA 24VDC
  • Protection rating: IP67
  • Solder terminals
  • Dimensions: 14.1 x 22mm (Length x Diameter)
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Colour Blue
    Contact configuration SPST
    Contact rating 0.05A 24VDC
    Current rating 0.05A
    Electrical life 50,000 Cycles
    Illuminated Yes
    Illumination colour Blue
    Illumination voltage 12VDC
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 19mm
    Panel thickness 1.0-3.0mm
    Protection level IP67
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 24VDC
