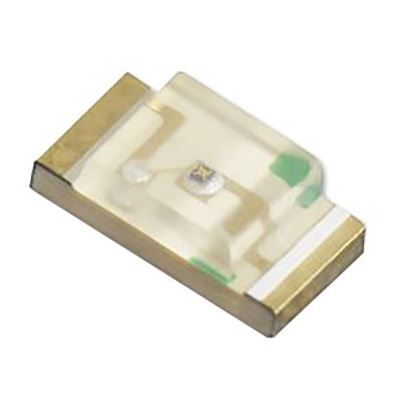

Blue 0402 SMD LED 90mcd
by OptoSupply
SKU 550596
MPN: OSB50402C1C
Availability:
1965 in stock
Original price
£0.12
-
Original price
£0.12
Original price
£0.12
Inc VAT
£0.12
-
£0.12
Current price
£0.12
Inc VAT
High brightness surface mount LEDs housed in industry standard 0402 package featuring a single chip. The LEDs offer a wide viewing angle and are suitable for a range of backlighting and other lighting applications.
Package: 1.0 x 0.5 x 0.4mm High brightness Water clear package Wide viewing angle Low power consumption
Specification
Back order lead time | 45 Days |
Colour | Blue |
Forward current | 20mA |
Forward voltage | 3.2V |
Height | 0.4mm |
Length | 1.0mm |
Lens colour | Clear |
Luminous intensity | 90mcd |
Moq | 10 |
Mounting style | Surface Mount |
Number of pins | 2 |
Operating temperature | -40°C to +85°C |
Package | 0402 |
Packaging | Cut-Tape |
Power dissipation | 72mW |
Viewing angle | 120° |
Wavelength | 465nm |
Width | 0.5mm |
