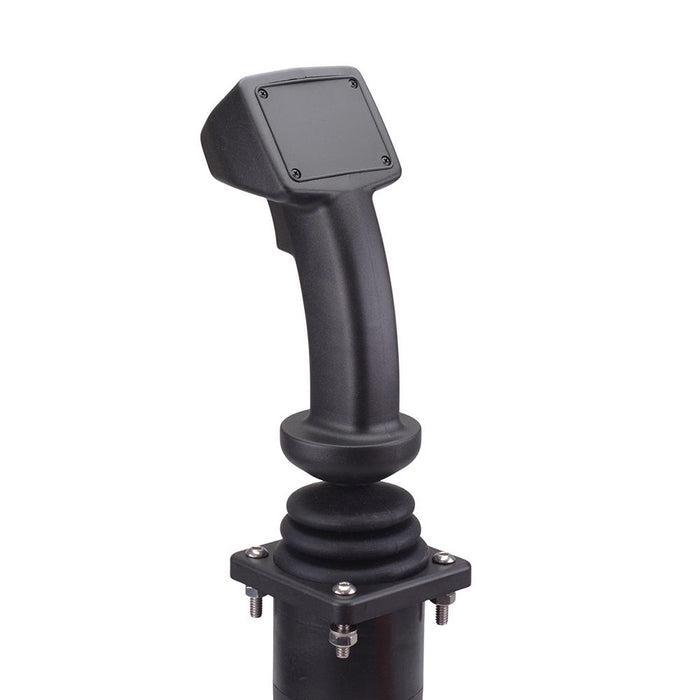

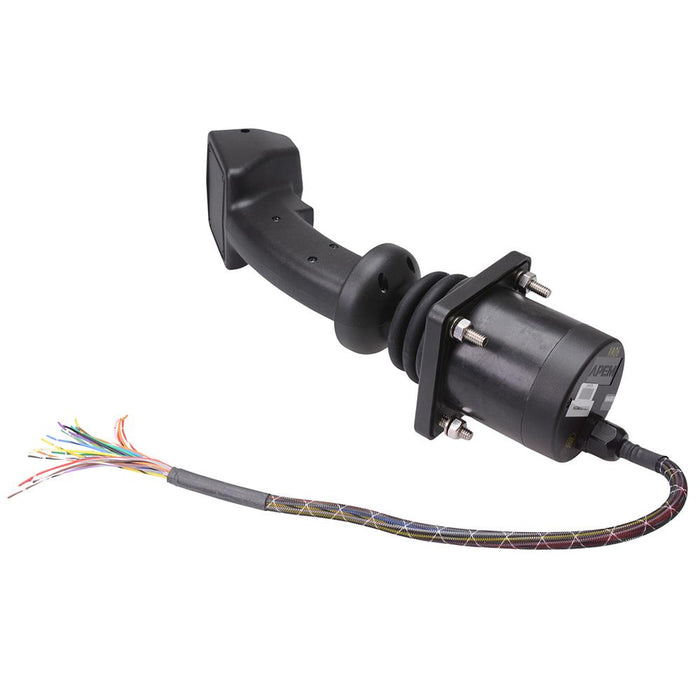

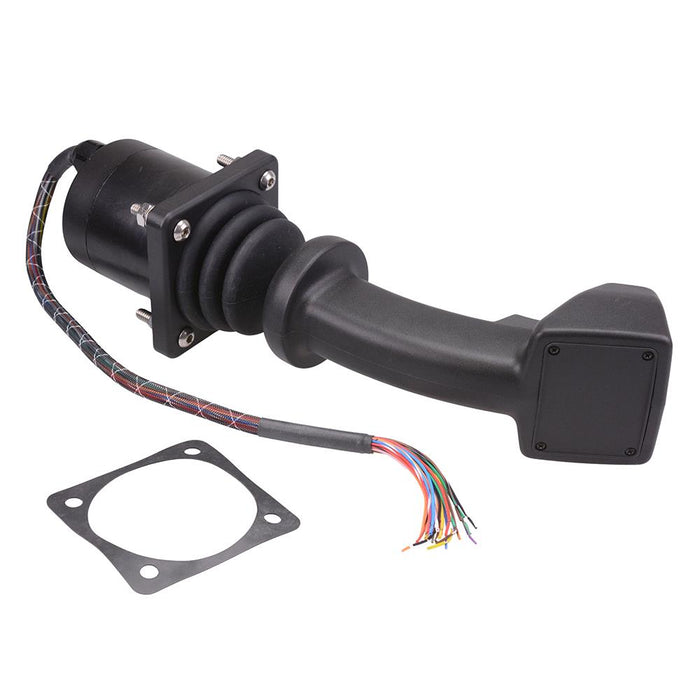

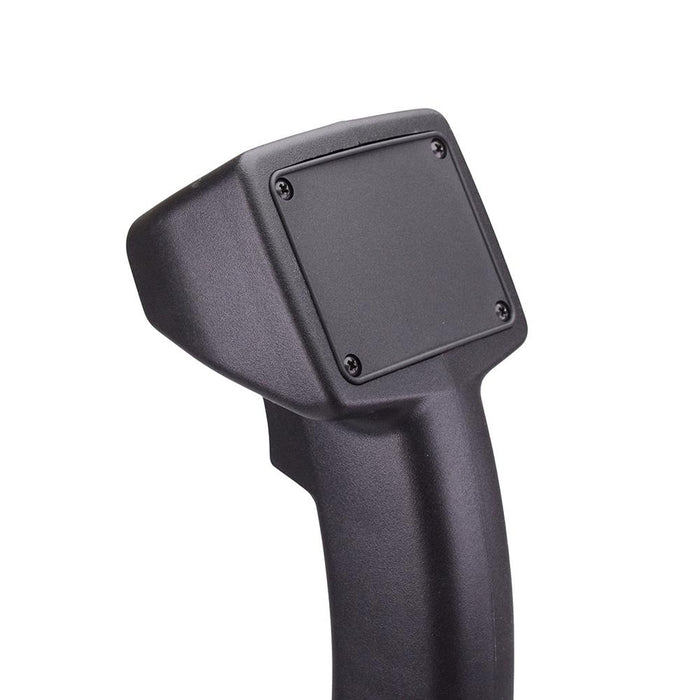

Black Square 2 Axis Hall Effect Joystick APEM HG33M0S0092354
by APEM
SKU 492500
MPN: HG2354
Availability:
9 in stock
Original price
£567.56
-
Original price
£567.56
Original price
£567.56
£567.56
-
£567.56
Current price
£567.56
The HG33M0S0092354 is a hand grip hall effect joystick featuring a rugged design for use in hand-operated applications requiring reliable positioning control. The HG series are custom configured to meet the exacting requirements of harsh applications including military vehicles, refuse handling trucks as well as fire and off-highway vehicles.
Hall effect sensing Sealed up to IP68 10 million life cycles 2 axis 2 sensor outputs Square limiter plate Self centering Supply voltage: 0.5V to 4.5V (sensor 1), 4.5V to 0.5V (sensor 2) Panel cut-out: 71.4mm Mounting hole pitch: 61 x 61mm
Specification
| Back Order Lead Time | 150 Days |
| Handle | Square |
| Joystick Travel | ±19° |
| Mechanical Life | 10,000,000 Cycles |
| MOQ | 1 |
| Number of Axis | 2 |
| Operating Temperature | -25°C to +70°C |
| Protection Level | IP68 |
| Technology | Hall Effect |
| Terminal Type | Tail Leads |
