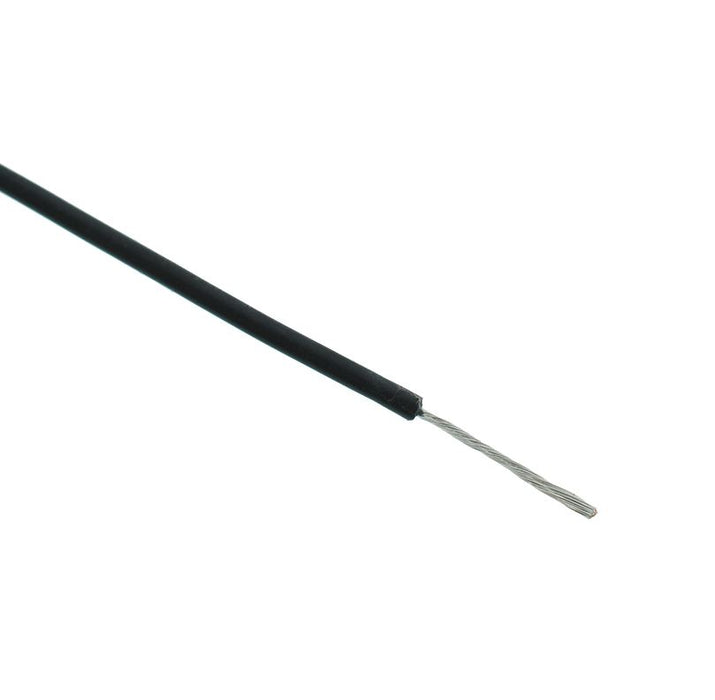

Black Silicone Lead Wire 26AWG 25/0.08mm (price per metre)

SKU 403032

MPN: 403032

Availability:
578 in stock
Original price £0.43 - Original price £0.43
Original price
£0.43 Inc VAT
£0.43 - £0.43
Current price £0.43 Inc VAT
Silicone insulated wire with a copper conductor suitable for a wide range of applications.

  • Wide temperature range
  • Flexible and lightweight
  • Rated voltage: 600V
  • 25/0.08mm copper stranding
  • Cut to length in pieces up to 25 metres
  • Specification
    Back order lead time 120 Days
    Colour Black
    Conductor cross section 0.14mm²
    Conductor diameter 0.46mm
    Conductor material Tinned Copper
    Conductor stranding 25/0.08mm
    Current rating 3.5A
    Insulation material Silicone
    Insulation thickness 0.52mm
    Operating temperature -60°C to 200°C
    Overall diameter 1.5mm
    Voltage rating 600V
    Wire gauge 26AWG
