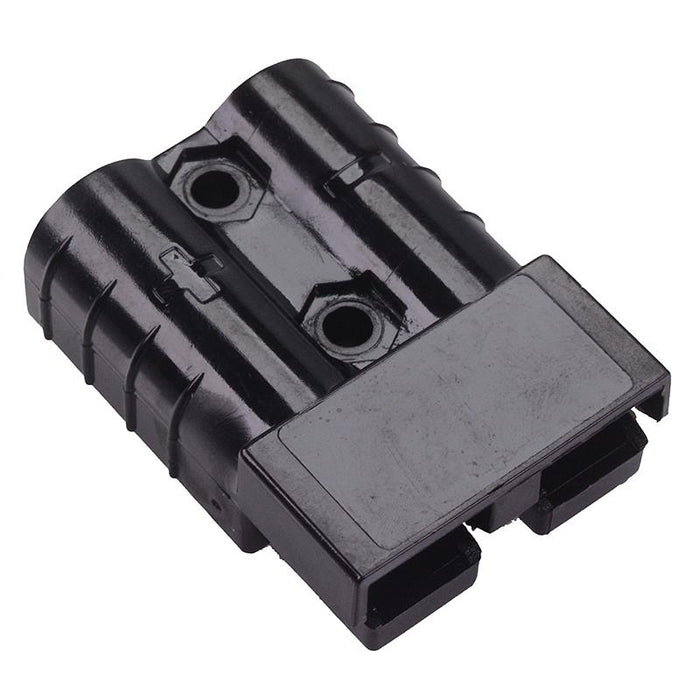

Black Power Connector Housing 50A 600V

SKU 483492

MPN: 483492

Only 4 left!
Original price £1.15 - Original price £1.15
Original price
£1.15 Inc VAT
£1.15 - £1.15
Current price £1.15 Inc VAT
Black power connectors designed for easy connection and disconnection of high current cables such as batteries, welding etc. The connectors feature a short-circuit proof design and are connected together by turning one connector upside to fit together.

  • Low insertion force
  • Genderless design
  • Polarity markings on the body
  • Rating: 50A 600V
  • Dimensions: 47.9 x 36 x 16mm
    Please note the terminals need to be purchased separately. 2 housings are needed to form a connection
  • Specification
    Back order lead time 30 Days
    Contact material Silver Plated Copper
    Current rating 50A
    Housing material Polycarbonate
    Mounting type Cable
    Operating temperature -20°C to +75°C
    Termination method Crimp
    Voltage rating 600V
