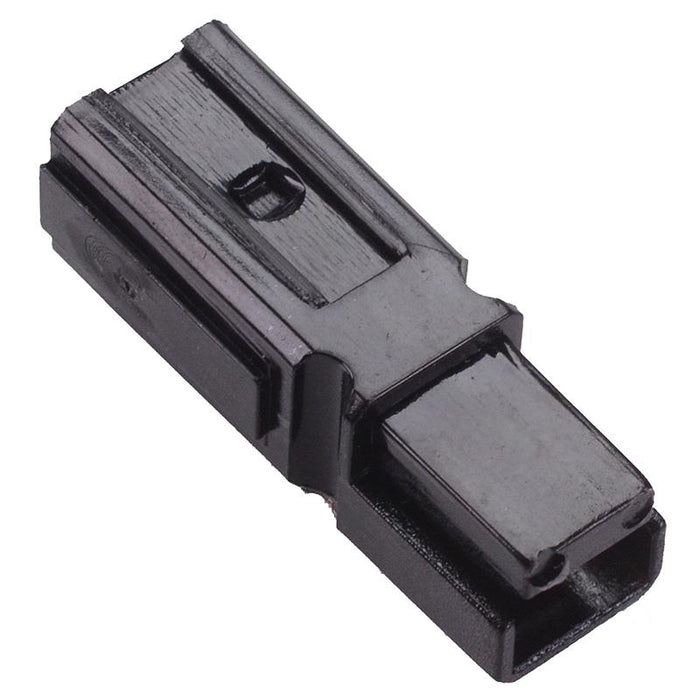

Black Power Connector Housing 30A 600V

SKU 483490

MPN: 483490

Availability:
55 in stock
Original price £0.77 - Original price £0.77
Original price
£0.77 Inc VAT
£0.77 - £0.77
Current price £0.77 Inc VAT
Black power connectors designed for easy connection and disconnection of high current cables such as batteries, welding etc. The connectors feature a compact and genderless design meaning they fit together by simplying flipping one around.

  • Low insertion force
  • Genderless design
  • Housings can be connected together into a block shape to create multiple poles
  • Rating: 30A 600V
  • Dimensions: 24.6 x 7.9 x 7.9mm
    Please note the terminals need to be purchased separately. 2 housings are needed to form a connection
  • Specification
    Back order lead time 30 Days
    Current rating 30A
    Housing material Polycarbonate
    Mounting type Cable
    Operating temperature -20°C to +75°C
    Termination method Crimp
    Voltage rating 600V
