Black On-On Toggle Switch SPDT 20A 12V

SKU 486938

MPN: 486938

Availability:
296 in stock
Original price £0.93 - Original price £0.93
Original price
£0.93 Inc VAT
£0.93 - £0.93
Current price £0.93 Inc VAT

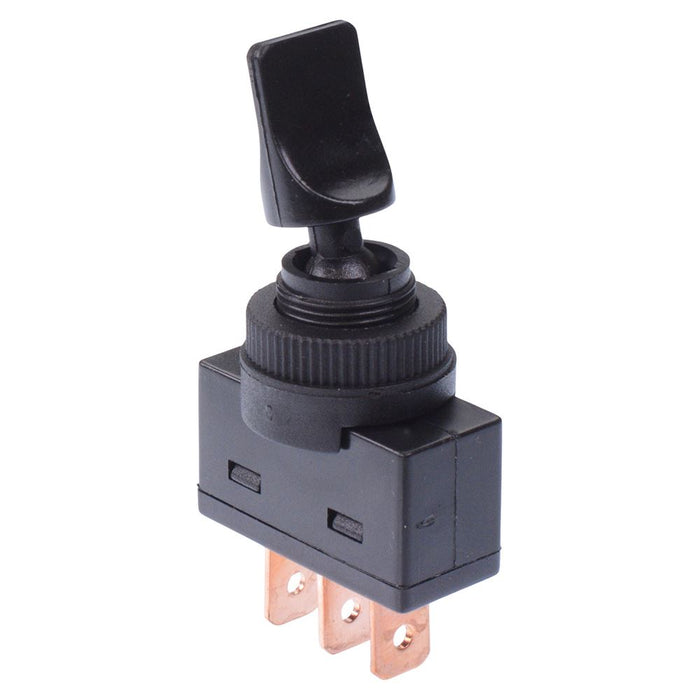

Black toggle switch featuring an On-On operation and SPDT contacts. The switch features quick connect terminals, and is suitable for a wide range of automotive applications.

  • Operation: On-Off-On
  • SPDT contacts
  • Rating: 20A 12VDC
  • Panel cut-out: 12mm
  • 6.35mm quick connect terminals
  • Dimensions: 54 x 26.2 x 12mm (Height x Length x Width)
  • Specification
    Actuation Latching
    Back order lead time 45 Days
    Colour Black
    Contact configuration SPDT
    Contact rating 20A 12VDC
    Current rating 20A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 12mm
    Switch operation On-On
    Terminal type Quick Connect
    Voltage rating 12VDC
