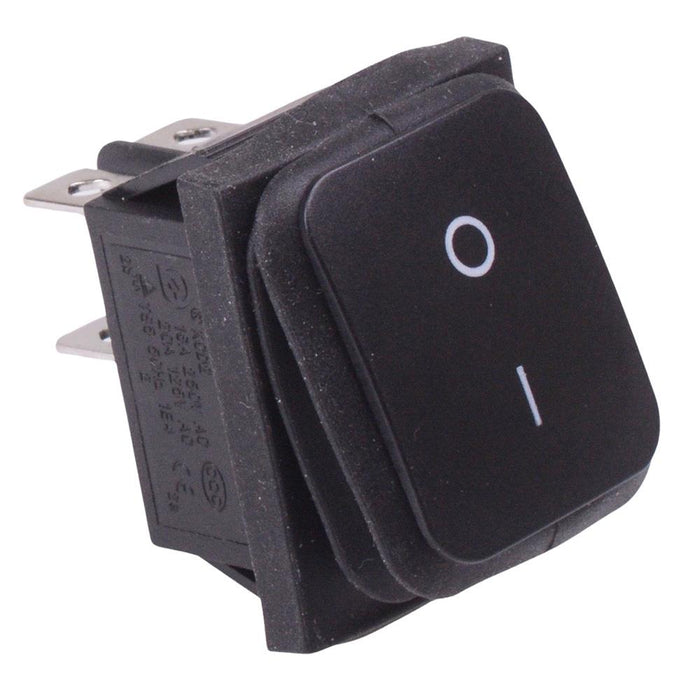

Black On-Off Waterproof Rocker Switch DPST 15A

SKU 489258

MPN: KCD2-201W

Availability:
399 in stock
Original price £1.44 - Original price £1.44
Original price
£1.44 Inc VAT
£1.44 - £1.44
Current price £1.44 Inc VAT
Black rectangle On-Off waterproof rocker switch featuring DPST contacts and quick connect terminals. The switch features IP67 protection and is protected from dust and water ingress.

  • On-Off action
  • 15A 250VAC Rating
  • DPST Contacts
  • 28.5 x 21.5mm panel cut-out
  • 6.3mm quick connect terminals
  • Specification
    Actuation Latching
    Back order lead time 120 Days
    Colour Black
    Contact configuration DPST
    Contact rating 15A 250VAC
    Current rating 15A
    Electrical life 10,000 Cycles
    Illuminated No
    Material PA66
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 28.5 x 21.5mm
    Protection level IP67
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
