Black On-Off-On Toggle Switch SPDT

SKU 481747

MPN: 481747

Availability:
268 in stock
Original price £1.18 - Original price £1.18
Original price
£1.18 Inc VAT
£1.18 - £1.18
Current price £1.18 Inc VAT

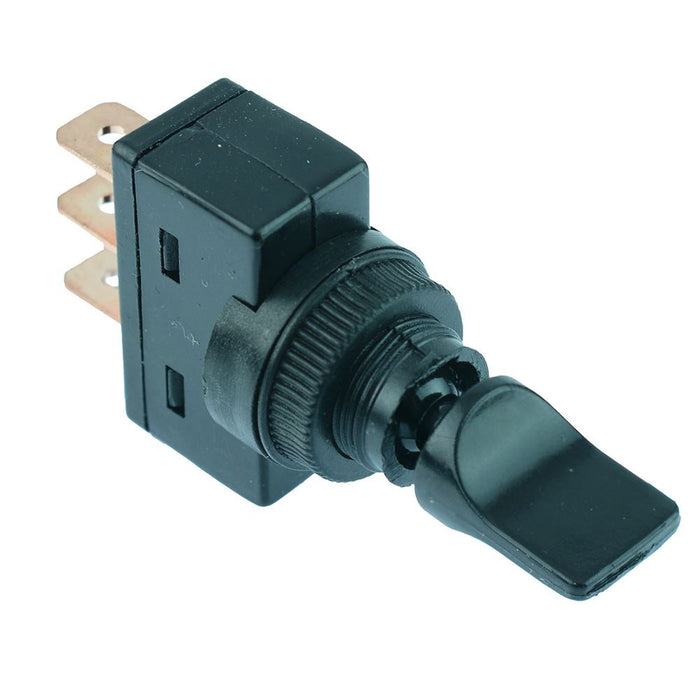

Black toggle switch featuring On-Off-On operation and SPDT contacts. The switch features quick connect terminals, and is suitable for a wide range of automotive applications.

  • Operation: On-Off-On
  • SPDT contacts
  • Rating: 20A 12VDC
  • Panel cut-out: 12mm
  • 6.3mm quick connect terminals
  • Dimensions: 54 x 26.2 x 12mm (Height x Length x Width)
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Contact configuration SPDT
    Contact rating 20A 12VDC
    Current rating 20A
    Electrical life 10,000 Cycles
    Illuminated No
    Number of poles 1
    Number of positions 3
    Operating temperature -25°C to +85°C
    Panel cut out 12mm
    Switch operation On-Off-On
    Terminal type Quick Connect
    Voltage rating 12VDC
