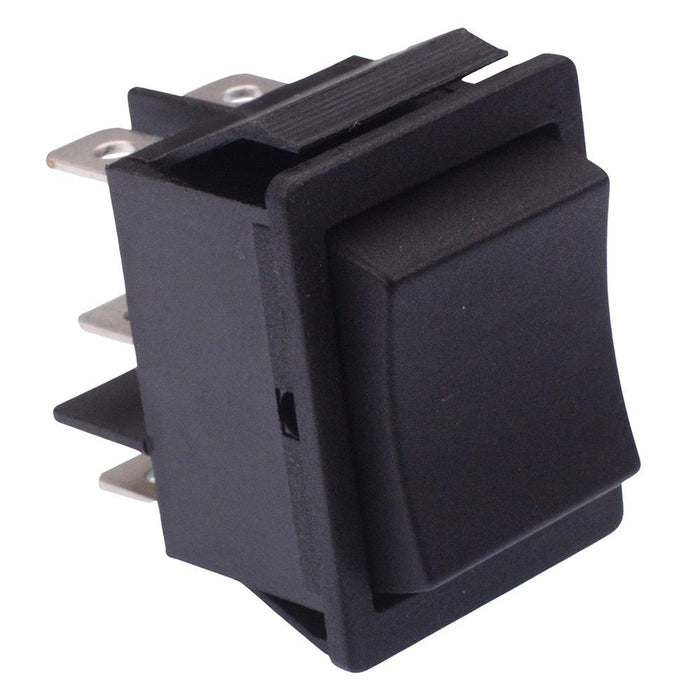

Black (On)-Off-(On) Momentary Rocker Switch 30 x 22.2mm DPDT 16A

SKU 487549

MPN: R565KKETOF

Availability:
297 in stock
Original price £1.18 - Original price £1.18
Original price
£1.18
£1.18 - £1.18
Current price £1.18
Black (On)-Off-(On) momentary rocker switch featuring 30 x 22.2mm panel cut-out and DPDT contacts. The switch features a 16A 250VAC rating and quick connect terminals, suitable for a wide range of applications.

  • DPDT contacts
  • (On)-Off-(On) momentary function
  • Rating: 16A 250VAC
  • Panel cut-out: 22.2 x 30mm
  • 6.35mm quick connect terminals
  • Specification
    Actuation Momentary
    Back Order Lead Time 45 Days
    Contact Configuration DPDT
    Contact Material Silver Alloy
    Contact Rating 16A 250VAC
    Current Rating 16A
    Electrical Life 10,000 Cycles
    Illuminated No
    Material PA66
    Mounting Style Panel
    Number of Poles 2
    Number of Positions 3
    Operating Temperature -20°C to +85°C
    Panel Cut Out 30 x 22mm
    Panel Thickness 0.7-3mm
    Switch Operation (On)-Off-(On)
    Terminal Type Quick Connect
    Voltage Rating 250VAC
