Black Off-(On) Momentary Square Push Button Switch SPST 6A
by Canal
SKU 491854
MPN: PS6-M1BBA-C1
Availability:
Only 2 left!
Original price
£1.04
-
Original price
£1.04
Original price
£1.04
£1.04
-
£1.04
Current price
£1.04

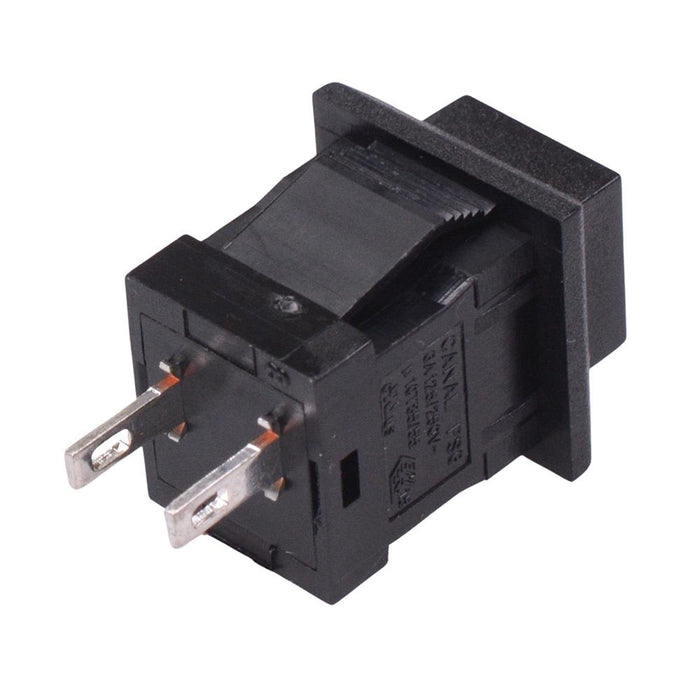

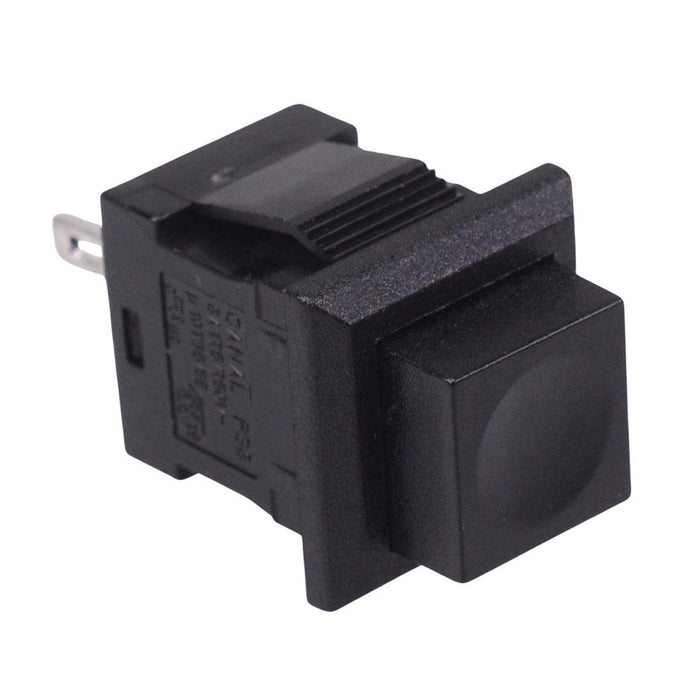

Black momentary square push button switch featuring an ergonomic actuator and solder terminals. The switch features SPST contacts and 6A current rating, suitable for a wide range of switching applications.
Function: momentary Off-(On) Contacts: SPST Panel cut-out: 12.4 x 11.2mm Rating: 6A 250VAC, 3A 48VDC Terminals: solder Dimensions: 25.3 x 14.0 x 14.0mm (height x length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 6A 250VAC, 3A 48VDC |
| Current Rating | 6A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -10°C to +85°C |
| Panel Cut Out | 12.4 x 11.2mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC / 48VDC |
