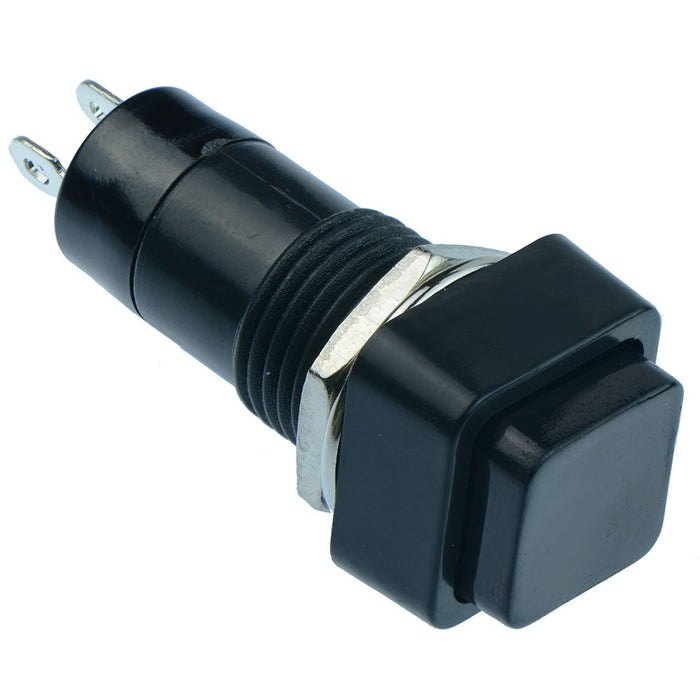

Black Off-(On) Momentary Square Push Button Switch 12mm SPST

by Canal
SKU 550413

MPN: PBS-12B black

Availability:
267 in stock
Original price £0.70 - Original price £0.70
Original price
£0.70 Inc VAT
£0.70 - £0.70
Current price £0.70 Inc VAT
Non-latching push button switch featuring a square actuator and SPST contacts.

  • Panel cut-out: 12mm
  • Button size: 11 x 11mm
  • Rating: 1A 250VAC
  • Solder lug terminals
  • Off-(On) momentary operation
  • Dimensions: 38.4 x 15.5mm (Height x Width)
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Colour Black
    Contact configuration SPST
    Contact rating 1A 250VAC
    Current rating 1A
    Electrical life 5000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of positions 2
    Operating force 300gf
    Operating temperature 0°C to +65°C
    Panel cut out 12mm
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 250VAC
