Black Off-(On) Momentary Rocker Switch 30 x 11mm SPST 16A
SKU 487454
MPN: R455KKETOF
Availability:
884 in stock
Original price
£0.71
-
Original price
£0.71
Original price
£0.71
Inc VAT
£0.71
-
£0.71
Current price
£0.71
Inc VAT

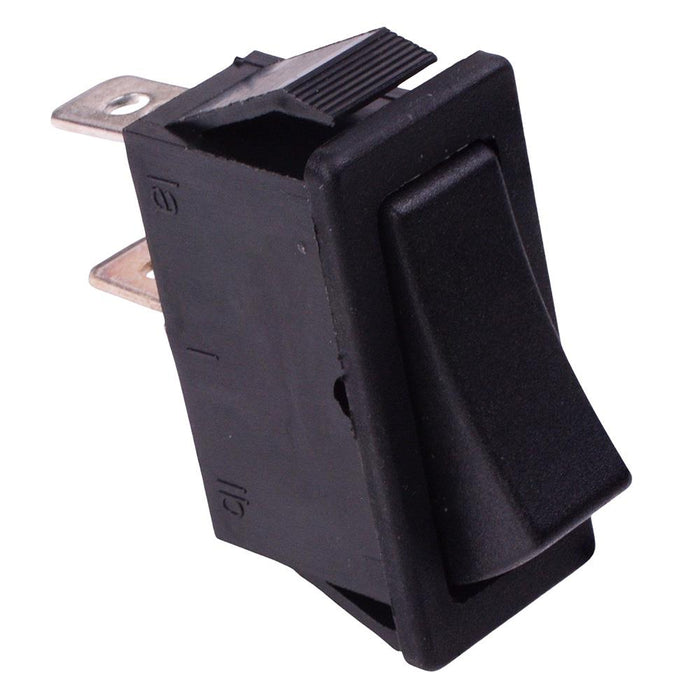

Black Off-(On) momentary rocker switch featuring 30 x 11mm panel cut-out and SPST contacts. The switch features a 16A 250VAC rating and quick connect terminals, suitable for a wide range of applications.
SPST contacts Off-(On) function Rating: 16A 250VAC Panel cut-out: 11 x 30mm 6.35mm quick connect terminals
Specification
Actuation | Momentary |
Back order lead time | 45 Days |
Contact configuration | SPST |
Contact material | Silver Alloy |
Contact rating | 16A 250VAC |
Current rating | 16A |
Electrical life | 10,000 Cycles |
Illuminated | No |
Material | PA66 |
Mounting style | Panel |
Number of poles | 1 |
Number of positions | 2 |
Operating temperature | -20°C to +85°C |
Panel cut out | 30 x 11mm |
Panel thickness | 0.7-3mm |
Switch operation | Off-(On) |
Terminal type | Quick Connect |
Voltage rating | 250VAC |
