Black Off-(On) Momentary 19mm Push Button Switch SPST
SKU 491059
MPN: SL1M19SS-FJT-2PB
Availability:
40 in stock
Original price
£4.37
-
Original price
£4.37
Original price
£4.37
£4.37
£4.37
-
£4.37
Current price
£4.37

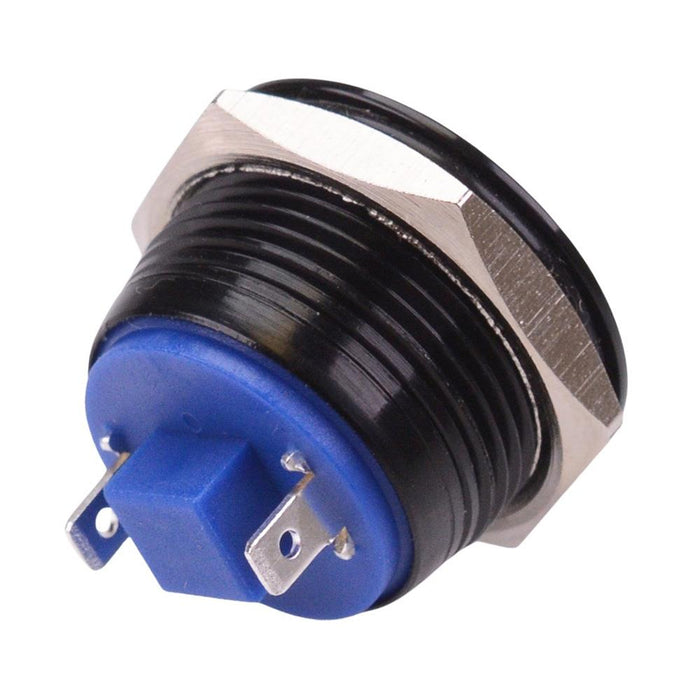

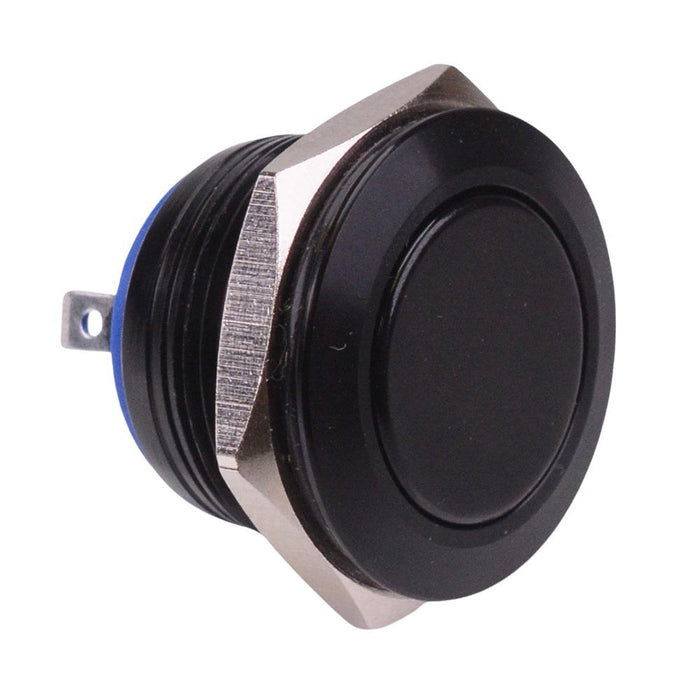

Black 19mm momentary push button switch featuring SPST normally open contacts and solder terminals. The switch is manufactured from zinc and is sealed to IP65, suitable for a wide range of applications.
Off-(On) momentary function SPST contacts Solder terminals Rating: 2A 36VDC Panel cut-out: 19mm Dimensions: 19.8 x 21.4mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 40 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 2A 36VDC |
| Current Rating | 2A |
| Electrical Life | 100,000 Cycles |
| Illuminated | No |
| Material | Zinc |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 19mm |
| Panel Thickness | 5mm |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 36VDC |
