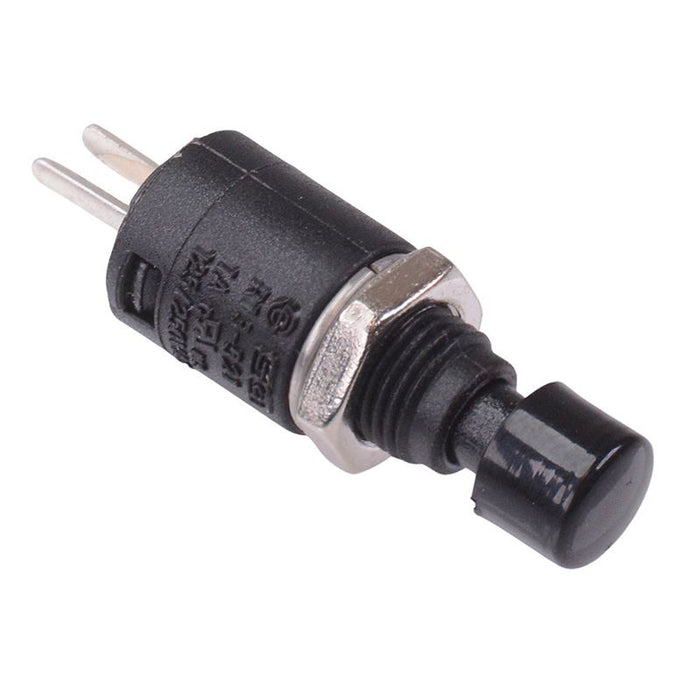

Black Off-(On) Miniature Push Button Switch SPST R13-521B

by SCI
SKU 485151

MPN: R13-521B Black

Availability:
971 in stock
Original price £1.01 - Original price £1.01
Original price
£1.01 Inc VAT
£1.01 - £1.01
Current price £1.01 Inc VAT
Black low cost Off-(On) push button switch featuring SPST contacts and solder terminals, suitable for low power panel mount applications.

  • Off-(On) momentary operation
  • SPST contacts
  • Pin terminals
  • 1A current rating
  • 125VAC voltage rating
  • Panel cut-out diameter: 5.2mm
  • Maximumm panel thickness: 4mm
  • Dimensions: 23.1 x 7.1mm (height x diameter
  • Specification
    Actuation Momentary
    Back order lead time 120 Days
    Contact configuration SPST
    Contact rating 1A 125VAC
    Current rating 1A
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of positions 2
    Panel cut out 5.2mm
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 125VAC
    Request a quote
