Black Off-(On) Low Profile Round 16mm Momentary Push Button Switch 3A SPST

by Canal
SKU 550395

MPN: PB-02-PM-B

Availability:
948 in stock
Original price £0.84 - Original price £0.84
Original price
£0.84 Inc VAT
£0.84 - £0.84
Current price £0.84 Inc VAT

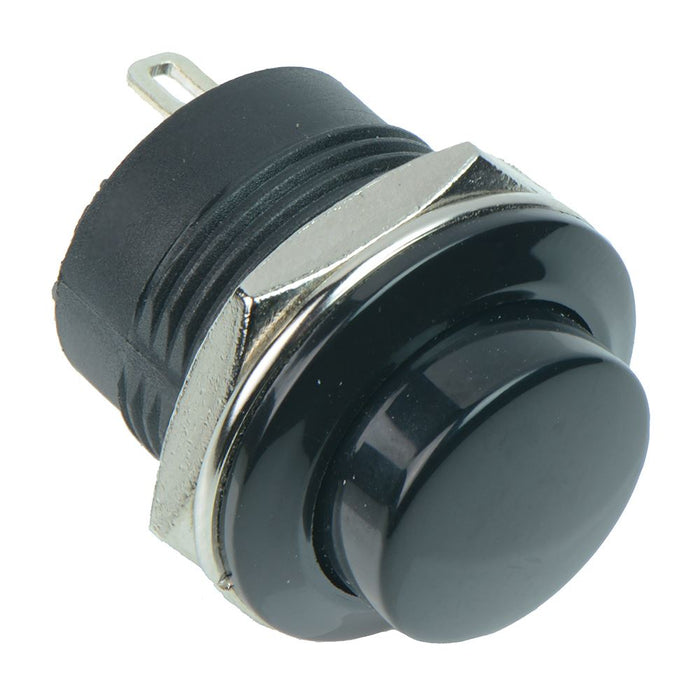

Round push button switch with Off-(On) momentary action. Suitable for panel mounting the switch comes with a locking nut making it ideal for a range of applications.

  • Colour: Black Button
  • Rating: 6A 125VAC, 3A 250VAC
  • Off-(On) momentary action
  • 16mm Panel Cut Out
  • 12.9mm Button Diameter
  • Solder Lug Terminals
  • SPST contacts
  • 6mm maximum panel thickness
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Colour Black
    Contact configuration SPST
    Contact rating 6A 125VAC, 3A 250VAC
    Current rating 6A @ 125VAC
    Electrical life 10000 Cycles Min
    Illuminated No
    Illumination colour Non Illuminated
    Material PA66
    Mounting style Panel
    Number of positions 2
    Operating force 250gf
    Operating temperature 0°C to +85°C
    Panel cut out 16mm
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 250VAC
