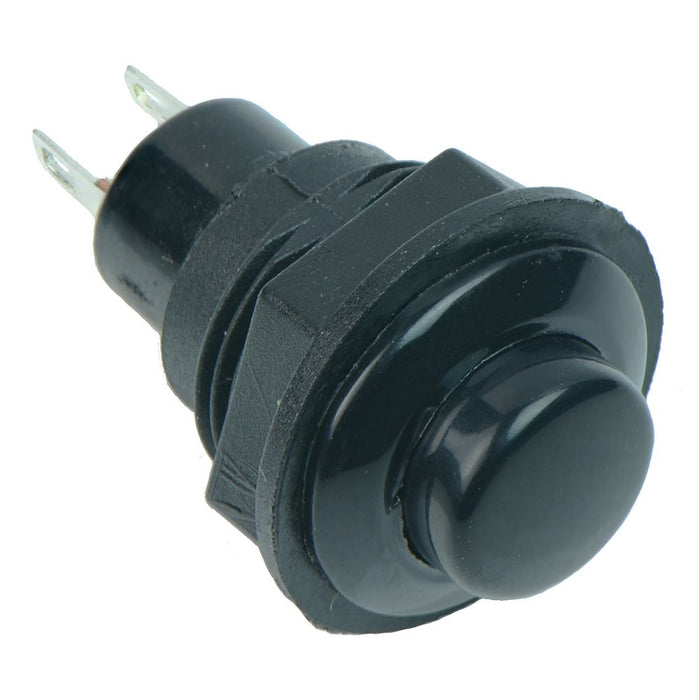

Black Off-(On) Low Profile Round 12mm Momentary Push Button Switch 1.5A SPST
by Canal
SKU 550396
MPN: PB-01-PP-B
Availability:
268 in stock
Original price
£0.87
-
Original price
£0.87
Original price
£0.87
Inc VAT
£0.87
-
£0.87
Current price
£0.87
Inc VAT
Round push button switch with a Off-(On) action making it suitable for a range of uses.
Colour: Black Button Rating: 3A 125VAC, 1.5A 250VAC Off-(On) momentary operation Black Plastic Housing 12.7mm Panel Cut Out 8.6mm Button Diameter Maximum panel thickness: 3mm Solder Lug Terminals SPST contacts
Specification
| Actuation | Momentary |
| Back order lead time | 45 Days |
| Colour | Black |
| Contact configuration | SPST |
| Contact rating | 3A 125VAC, 1.5A 250VAC |
| Current rating | 3A @ 125VAC |
| Electrical life | 10000 Cycles Min |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | PA66 |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating force | 150gf |
| Operating temperature | 0°C to +85°C |
| Panel cut out | 12.7mm |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 250VAC |
