Black Off-(On) 15mm Push Button Momentary Switch SPST R13-523A
by SCI
SKU 482615
MPN: R13-523A-05 Black
Availability:
499 in stock
Original price
£1.81
-
Original price
£1.81
Original price
£1.81
£1.81
-
£1.81
Current price
£1.81

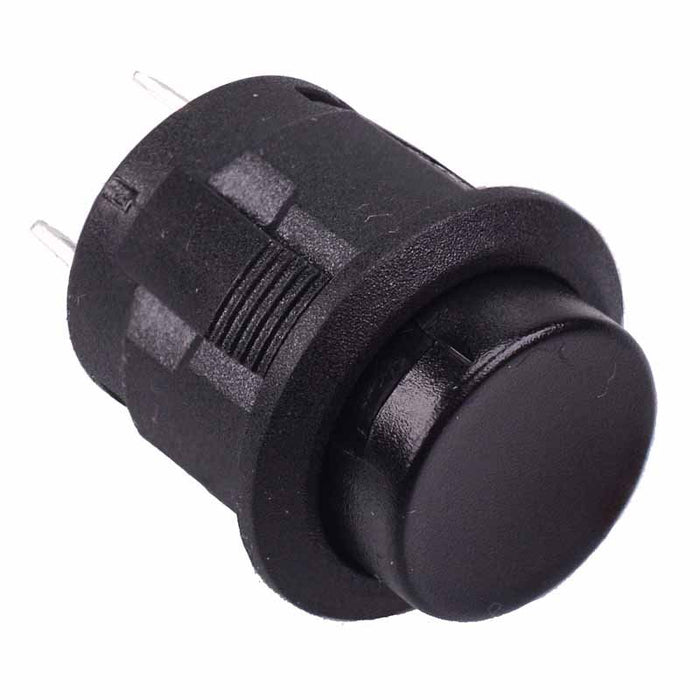

Black push fit panel mount momentary push button switch featuring SPST normally open contacts and solder terminals. The switch 3A current rating making them suitable for low power applications.
SPST-NO contacts Off-(On) operation Panel cut-out: 15mm Solder terminals Rating: 1.5A 250VAC, 3A 125VAC Dimensions: 25 x 19mm (Length x Diameter) 12.8mm button diameter SCI R13-523A series
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 3A 125VAC, 1.5A 250VAC |
| Current Rating | 3A @ 125VAC |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Panel Cut Out | 15mm |
| Panel Thickness | 0.75-3.0mm |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
