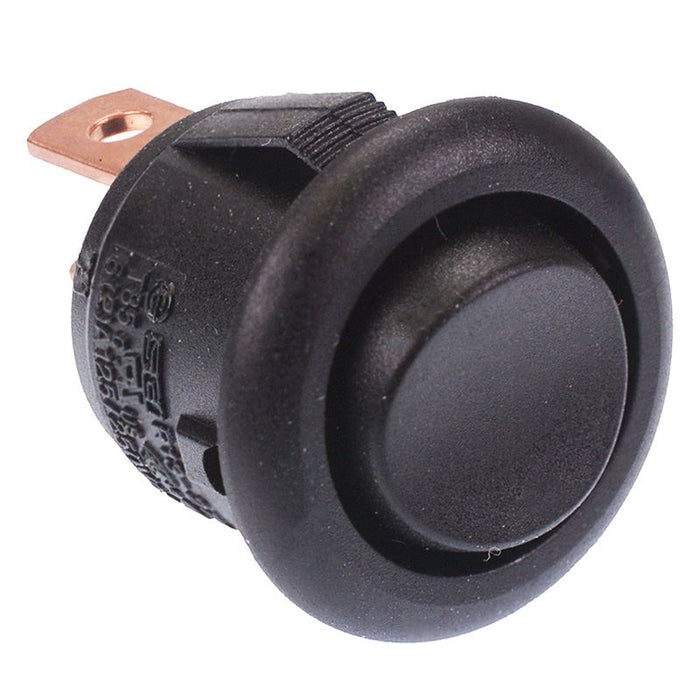

Black Mini Round On-Off-On Rocker Switch SPDT 12A SCI R13-270D
by SCI
SKU 481956
MPN: R13-270D
Availability:
1330 in stock
Original price
£0.81
-
Original price
£0.81
Original price
£0.81
Inc VAT
£0.81
-
£0.81
Current price
£0.81
Inc VAT
Circular black miniature rocker Switch featuring SPDT contacts and On-Off-On operation. The switch is manufactured from nylon and provides the user with a reliable compact switch suitable for panel mount applications.
On-Off-On operation SPDT contacts Rating: 6A 250VAC, 12A 125VAC 15.2mm diameter panel cut-out Snap-in type mounting Maximum panel thickness: 3mm 4.8mm copper alloy terminals Dimensions 24.9mm x 18mm (Length x Diameter)
Specification
| Actuation | Latching |
| Back order lead time | 120 Days |
| Colour | Black |
| Contact configuration | SPDT |
| Contact rating | 6A 250VAC, 12A 125VAC |
| Current rating | 12A |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 3 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 15.2mm |
| Switch operation | On-Off-On |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
